GE 3.5CS Ultrasound Probe Repair

If your GE 3.5CS is producing degraded images, failing probe tests or showing physical damage, this page helps you judge what is likely wrong and whether a repair makes sense before you commit to a replacement.

Manufacturer	GE
Model	3.5CS
Probe type	Convex array
Compatible systems	GE Logiq 5, GE Logiq 7, GE Logiq 9, GE Logiq S6

The 3.5CS typically pairs with GE Logiq 5, GE Logiq 7, GE Logiq 9, GE Logiq S6; the same fault can present differently between console revisions, which is why the host system is asked for with the quote details.

On convex probes such as the 3.5CS, the curved acoustic window wears unevenly under pressure-heavy scanning; lens condition is the first thing to check when image quality drops.

Common failure modes for the 3.5CS

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Large areas of the array not firing	Extensive element loss across the acoustic stack	Usually not economical
Cracked or dented housing	Impact damage; housing can usually be replaced or resealed	Usually repairable
Bubbles or lifting at the lens face	The lens separating from the acoustic stack underneath	Usually repairable
Fuzzy or noisy image that cleaning does not fix	Lens wear or early element degradation	Case by case
Cuts, gouges or discoloration on the lens membrane	Wear from use, or chemical attack from disinfectants	Usually repairable
Depth performance clearly below what this probe used to deliver	Ageing elements or lens delamination reducing acoustic output	Case by case
Latch or locking hardware damaged on the connector shell	Mechanical damage to the connector shell	Usually repairable

Check these before you ship the probe

• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Run the system’s built-in probe test or element check if your console provides one.

Repair, exchange or replace — which applies to your 3.5CS

For the 3.5CS, think in terms of damage depth: surface and cable-level faults are usually repairable at a fraction of replacement cost; acoustic stack failures are evaluated case by case; extensive element loss generally means replacement. Send the symptoms and photos first – that determines the path before anything ships.

What we need to quote your 3.5CS repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

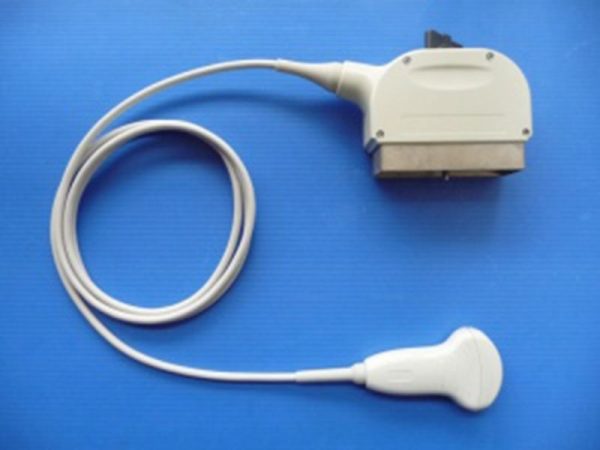

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific 3.5CS can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
