Chison T5-V Ultrasound Probe Repair

Before writing off a damaged Chison T5-V, compare its symptoms against the failure modes below. Many lens, cable and connector faults on this probe class are economically repairable.

Manufacturer	Chison
Model	T5-V
Probe type	TEE array
Frequency reference	4.0–6.0 MHz
Typical applications	Cardiac
Compatible systems	Chison SonoBook 9
Source record	The Ultrasound Source product record

In service the T5-V is most often found on Chison SonoBook 9. Console-side settings and module revisions still vary, so the exact system build is part of any assessment.

On TEE heads such as the T5-V, articulation cables, tube integrity and bite damage dominate the fault picture; electrical leak testing is non-negotiable after any suspected breach.

Common failure modes for the T5-V

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Fuzzy or noisy image that cleaning does not fix	A worn lens surface or elements beginning to degrade	Case by case
Image cuts out when the cable is flexed	Broken internal conductors in the cable	Case by case
Dark bands or dropout lines in the image	Element dropout, or a conductor break inside the cable	Case by case
Noticeably weaker penetration than the paired probe	Reduced acoustic output from element ageing or a delaminating lens	Case by case
Bubbles or lifting at the lens face	The lens separating from the acoustic stack underneath	Usually repairable
Connector lock broken or hardware missing	Broken locking mechanics on the connector housing	Usually repairable
Strain relief pulling away from the cable or gone rigid	Flex fatigue where the cable meets the probe or connector	Usually repairable
Bite marks or punctures on the insertion tube	Patient bite damage to the flexible shaft	Case by case
Tip articulation stiff, loose or unresponsive	Worn or broken articulation cables	Case by case
Failed leak test on a TEE probe	Breach in the insertion tube or tip sealing	Case by case

Check these before you ship the probe

• Compare penetration and uniformity against a known-good probe on the same preset.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Run the system’s built-in probe test or element check if your console provides one.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Do not continue clinical use after suspected bite damage; note the articulation behaviour (stiff, loose, unresponsive) for the assessment.

Repair, exchange or replace — which applies to your T5-V

For the T5-V, think in terms of damage depth: surface and cable-level faults are usually repairable at a fraction of replacement cost; acoustic stack failures are evaluated case by case; extensive element loss generally means replacement. Send the symptoms and photos first – that determines the path before anything ships.

What we need to quote your T5-V repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

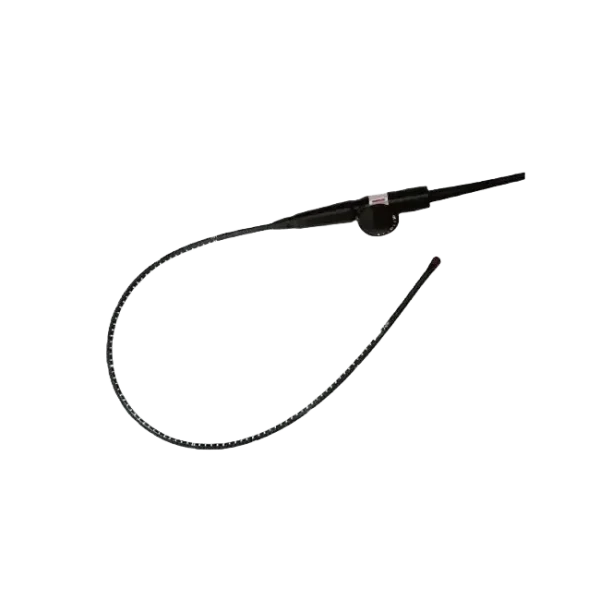

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific T5-V can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
