ATL 3D8-5V Ultrasound Probe Repair

Before writing off a damaged ATL 3D8-5V, compare its symptoms against the failure modes below. Many lens, cable and connector faults on this probe class are economically repairable.

Manufacturer	ATL
Model	3D8-5V
Probe type	Endocavity array
Compatible systems	Philips HDI-4000

You will usually see the 3D8-5V running on Philips HDI-4000. Mention the console model with the fault description – connector and revision differences matter.

For endocavity heads such as the 3D8-5V, reprocessing chemistry is the main enemy – seal integrity and lens condition decide service life more than the electronics do.

Common failure modes for the 3D8-5V

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Fuzzy or noisy image that cleaning does not fix	Lens wear or early element degradation	Case by case
Image cuts out when the cable is flexed	One or more conductors broken inside the cable bundle	Case by case
Split seams or impact marks on the probe body	A drop or knock; housings are routinely replaced or resealed	Usually repairable
Vertical shadowing or missing scan lines on screen	Failed transducer elements or a broken conductor in the cable	Case by case
Bent, broken or corroded connector pins	Mechanical damage from forcing or dropping the connector	Usually repairable
Depth performance clearly below what this probe used to deliver	Reduced acoustic output from element ageing or a delaminating lens	Case by case
Visible nicks, grooves or staining on the lens surface	Wear from use, or chemical attack from disinfectants	Usually repairable
Fluid found inside the probe head after a leak test	Seal failure allowing disinfectant ingress	Case by case
Failed electrical leakage test	Compromised sealing on an endocavity probe	Case by case

Check these before you ship the probe

• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Have the probe leak-tested before further use – fluid ingress worsens quickly and creates a patient-safety issue.

Repair, exchange or replace — which applies to your 3D8-5V

Whether a 3D8-5V is worth repairing depends on the damage scope: localized lens, cable, strain relief and connector faults are routine repairs, while widespread element loss usually is not economical. An exchange unit can bridge the gap when downtime matters, and replacement becomes rational when repair cost approaches replacement value. A written assessment settles this per probe – condition, not model, decides it.

What we need to quote your 3D8-5V repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

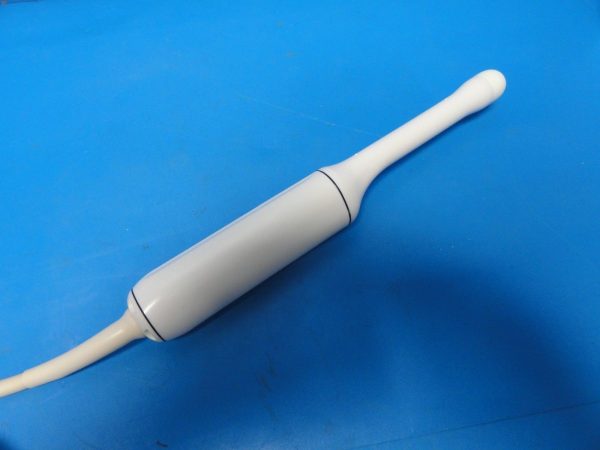

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific 3D8-5V can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
