ATL C4-2 Ultrasound Probe Repair

This page covers the ATL C4-2 from a repair perspective: the failure modes we see on this class of probe, how to check the probe yourself, and what information gets you an accurate repair quote.

Manufacturer	ATL
Model	C4-2
Probe type	Convex array
Compatible systems	ATL HDI-3000, ATL HDI-5000

You will usually see the C4-2 running on ATL HDI-3000, ATL HDI-5000. Mention the console model with the fault description – connector and revision differences matter.

Curved arrays like the C4-2 see heavy abdominal duty, and the curved lens face takes the brunt of it – delamination and membrane wear typically show up before element failures do.

Common failure modes for the C4-2

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Depth performance clearly below what this probe used to deliver	Ageing elements or lens delamination reducing acoustic output	Case by case
Whole regions of the image blank across the array width	Widespread element or acoustic stack failure	Usually not economical
Intermittent signal that changes as the cable moves	Broken internal conductors in the cable	Case by case
Fuzzy or noisy image that cleaning does not fix	A worn lens surface or elements beginning to degrade	Case by case
Vertical shadowing or missing scan lines on screen	Failed transducer elements or a broken conductor in the cable	Case by case
Pin damage or corrosion visible in the connector	Mechanical damage from forcing or dropping the connector	Usually repairable
Strain relief pulling away from the cable or gone rigid	Flex fatigue where the cable meets the probe or connector	Usually repairable

Check these before you ship the probe

• Run the system’s built-in probe test or element check if your console provides one.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.

Repair, exchange or replace — which applies to your C4-2

For the C4-2, think in terms of damage depth: surface and cable-level faults are usually repairable at a fraction of replacement cost; acoustic stack failures are evaluated case by case; extensive element loss generally means replacement. Send the symptoms and photos first – that determines the path before anything ships.

What we need to quote your C4-2 repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

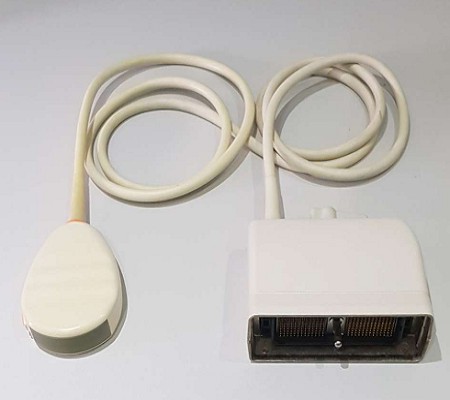

Product imagery on this page is representative of the C4-2 probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
