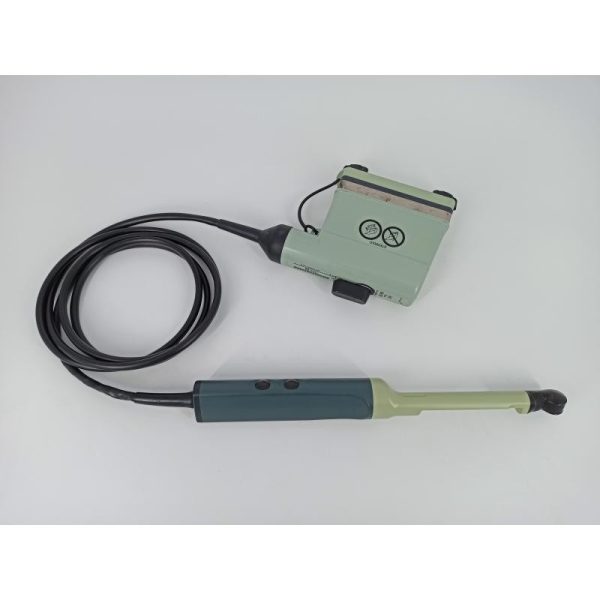

BK Medical 8818 Ultrasound Probe Repair

If your BK Medical 8818 is producing degraded images, failing probe tests or showing physical damage, this page helps you judge what is likely wrong and whether a repair makes sense before you commit to a replacement.

Manufacturer	BK Medical
Model	8818
Probe type	Endocavity array
Compatible systems	BK Medical Flex Focus 500, BK Medical Flex Focus 700

You will usually see the 8818 running on BK Medical Flex Focus 500, BK Medical Flex Focus 700. Mention the console model with the fault description – connector and revision differences matter.

Endocavity probes like the 8818 live through high-level disinfection cycles that attack seals and the lens; fluid ingress is the fault that ends most of them, which is why leak testing matters.

Common failure modes for the 8818

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Strain relief separated, split or stiff	Cable flex fatigue at the probe or connector end	Usually repairable
Large areas of the array not firing	Widespread element or acoustic stack failure	Usually not economical
Fuzzy or noisy image that cleaning does not fix	Lens wear or early element degradation	Case by case
Pin damage or corrosion visible in the connector	Connector damage from forced insertion or drops	Usually repairable
Visible nicks, grooves or staining on the lens surface	Wear from use, or chemical attack from disinfectants	Usually repairable
Dark bands or dropout lines in the image	Element dropout, or a conductor break inside the cable	Case by case
Image cuts out when the cable is flexed	Broken internal conductors in the cable	Case by case
Fluid found inside the probe head after a leak test	Seal failure allowing disinfectant ingress	Case by case
Failed electrical leakage test	Compromised sealing on an endocavity probe	Case by case

Check these before you ship the probe

• Compare penetration and uniformity against a known-good probe on the same preset.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Run the system’s built-in probe test or element check if your console provides one.
• Have the probe leak-tested before further use – fluid ingress worsens quickly and creates a patient-safety issue.

Repair, exchange or replace — which applies to your 8818

Whether a 8818 is worth repairing depends on the damage scope: localized lens, cable, strain relief and connector faults are routine repairs, while widespread element loss usually is not economical. An exchange unit can bridge the gap when downtime matters, and replacement becomes rational when repair cost approaches replacement value. A written assessment settles this per probe – condition, not model, decides it.

What we need to quote your 8818 repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific 8818 can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
