Chison L7M-A-1 Ultrasound Probe Repair

This page covers the Chison L7M-A-1 from a repair perspective: the failure modes we see on this class of probe, how to check the probe yourself, and what information gets you an accurate repair quote.

Manufacturer	Chison
Model	L7M-A-1

Common failure modes for the L7M-A-1

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Visible nicks, grooves or staining on the lens surface	Mechanical wear or disinfectant damage to the lens	Usually repairable
Bubbles or lifting at the lens face	Lens delamination from the acoustic stack	Usually repairable
Cracked or dented housing	Impact damage; housing can usually be replaced or resealed	Usually repairable
Connector lock broken or hardware missing	Broken locking mechanics on the connector housing	Usually repairable
Noticeably weaker penetration than the paired probe	Reduced acoustic output from element ageing or a delaminating lens	Case by case
Strain relief pulling away from the cable or gone rigid	Cable flex fatigue at the probe or connector end	Usually repairable
Intermittent signal that changes as the cable moves	Broken internal conductors in the cable	Case by case

Check these before you ship the probe

• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Run the system’s built-in probe test or element check if your console provides one.

Repair, exchange or replace — which applies to your L7M-A-1

For the L7M-A-1, think in terms of damage depth: surface and cable-level faults are usually repairable at a fraction of replacement cost; acoustic stack failures are evaluated case by case; extensive element loss generally means replacement. Send the symptoms and photos first – that determines the path before anything ships.

What we need to quote your L7M-A-1 repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

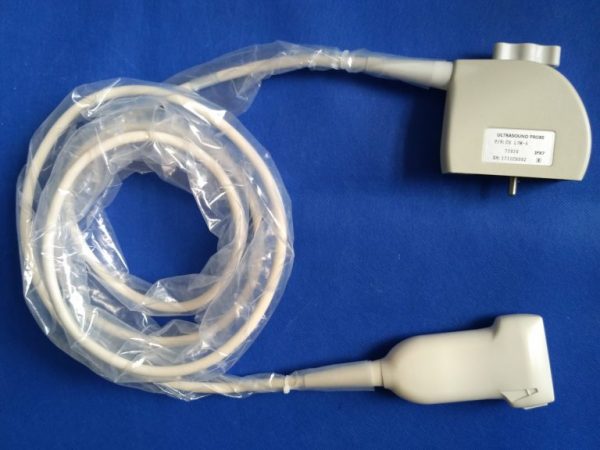

Product imagery on this page is representative of the L7M-A-1 probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
