GE 3.5C Ultrasound Probe Repair

If your GE 3.5C is producing degraded images, failing probe tests or showing physical damage, this page helps you judge what is likely wrong and whether a repair makes sense before you commit to a replacement.

Manufacturer	GE
Model	3.5C
Probe type	Convex array
Typical applications	Abdominal, OB/GYN
Compatible systems	Logiq p5

You will usually see the 3.5C running on Logiq p5. Mention the console model with the fault description – connector and revision differences matter.

On convex probes such as the 3.5C, the curved acoustic window wears unevenly under pressure-heavy scanning; lens condition is the first thing to check when image quality drops.

Common failure modes for the 3.5C

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Air pockets or peeling visible on the acoustic lens	Lens delamination from the acoustic stack	Usually repairable
Noticeably weaker penetration than the paired probe	Reduced acoustic output from element ageing or a delaminating lens	Case by case
Image cuts out when the cable is flexed	Broken internal conductors in the cable	Case by case
Fuzzy or noisy image that cleaning does not fix	A worn lens surface or elements beginning to degrade	Case by case
Dark bands or dropout lines in the image	Element dropout, or a conductor break inside the cable	Case by case
Latch or locking hardware damaged on the connector shell	Broken locking mechanics on the connector housing	Usually repairable
Split seams or impact marks on the probe body	A drop or knock; housings are routinely replaced or resealed	Usually repairable

Check these before you ship the probe

• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Run the system’s built-in probe test or element check if your console provides one.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.

Repair, exchange or replace — which applies to your 3.5C

Repair suits the 3.5C when damage is mechanical or confined – lens membrane, strain relief, cable jacket, connector hardware. Once element dropout spreads across large sections of the array, repair cost climbs toward replacement value and stops making sense. If uptime is critical, ask about exchange options while your probe is assessed.

What we need to quote your 3.5C repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

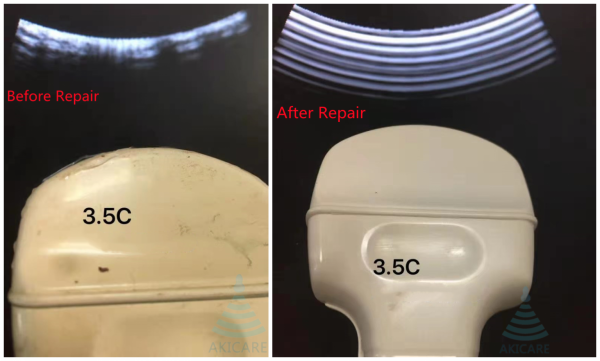

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific 3.5C can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
