GE 3S-RC Ultrasound Probe Repair

The GE 3S-RC is a common candidate for repair rather than replacement. This page lists its typical failure modes, self-checks you can run, and the details a repair lab needs from you.

Manufacturer	GE
Model	3S-RC
Probe type	Phased Array
Compatible systems	GE Logiq C2, GE Logiq C3, GE Logiq C5, GE Logiq C5 Premium

The 3S-RC typically pairs with GE Logiq C2, GE Logiq C3, GE Logiq C5, GE Logiq C5 Premium; the same fault can present differently between console revisions, which is why the host system is asked for with the quote details.

Phased arrays like the 3S-RC pack tightly spaced elements into a small footprint – edge-element failures distort the sector image early, and cardiac duty cycles accelerate cable fatigue.

Common failure modes for the 3S-RC

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Whole regions of the image blank across the array width	Extensive element loss across the acoustic stack	Usually not economical
Bent, broken or corroded connector pins	Mechanical damage from forcing or dropping the connector	Usually repairable
Strain relief separated, split or stiff	Flex fatigue where the cable meets the probe or connector	Usually repairable
Air pockets or peeling visible on the acoustic lens	Lens delamination from the acoustic stack	Usually repairable
Latch or locking hardware damaged on the connector shell	Mechanical damage to the connector shell	Usually repairable
Grainy, low-detail image even after presets are checked	Lens wear or early element degradation	Case by case
Cracked or dented housing	A drop or knock; housings are routinely replaced or resealed	Usually repairable
Sector image narrows or loses the apex	Element failure concentrated at the array edge	Case by case

Check these before you ship the probe

• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Run the system’s built-in probe test or element check if your console provides one.

Repair, exchange or replace — which applies to your 3S-RC

Whether a 3S-RC is worth repairing depends on the damage scope: localized lens, cable, strain relief and connector faults are routine repairs, while widespread element loss usually is not economical. An exchange unit can bridge the gap when downtime matters, and replacement becomes rational when repair cost approaches replacement value. A written assessment settles this per probe – condition, not model, decides it.

What we need to quote your 3S-RC repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

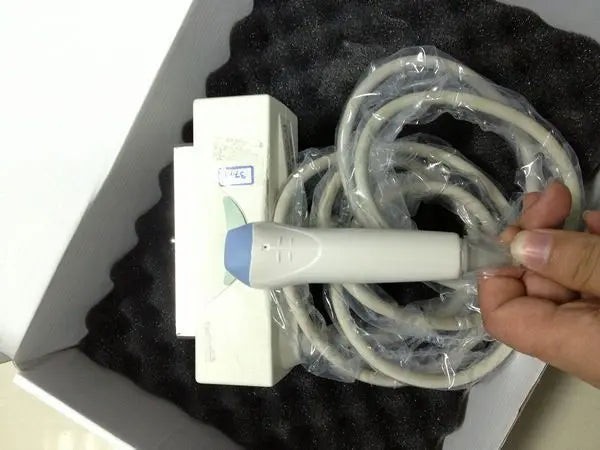

Product imagery on this page is representative of the 3S-RC probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
