GE 3SC-RS Ultrasound Probe Repair

Use this reference to troubleshoot the GE 3SC-RS: identify the fault from what you see, judge whether it is typically repairable, and prepare the details needed for a quote.

Manufacturer	GE
Model	3SC-RS
Probe type	Phased Array
Compatible systems	Logiq e, Logiq P9, Vivid i, Vivid S5

In service the 3SC-RS is most often found on Logiq e, Logiq P9, Vivid i, Vivid S5. Console-side settings and module revisions still vary, so the exact system build is part of any assessment.

Compact phased-array heads such as the 3SC-RS are sensitive to element dropout at the sector edges, and round-the-clock cardiac use is hard on cables and strain reliefs.

Common failure modes for the 3SC-RS

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Noticeably weaker penetration than the paired probe	Ageing elements or lens delamination reducing acoustic output	Case by case
Strain relief separated, split or stiff	Cable flex fatigue at the probe or connector end	Usually repairable
Bubbles or lifting at the lens face	Lens delamination from the acoustic stack	Usually repairable
Grainy, low-detail image even after presets are checked	A worn lens surface or elements beginning to degrade	Case by case
Image cuts out when the cable is flexed	One or more conductors broken inside the cable bundle	Case by case
Cuts, gouges or discoloration on the lens membrane	Mechanical wear or disinfectant damage to the lens	Usually repairable
Connector lock broken or hardware missing	Mechanical damage to the connector shell	Usually repairable
Sector image narrows or loses the apex	Element failure concentrated at the array edge	Case by case

Check these before you ship the probe

• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Run the system’s built-in probe test or element check if your console provides one.

Repair, exchange or replace — which applies to your 3SC-RS

For the 3SC-RS, think in terms of damage depth: surface and cable-level faults are usually repairable at a fraction of replacement cost; acoustic stack failures are evaluated case by case; extensive element loss generally means replacement. Send the symptoms and photos first – that determines the path before anything ships.

What we need to quote your 3SC-RS repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

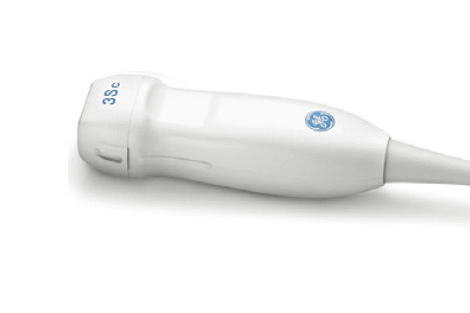

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific 3SC-RS can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
