GE 618e Ultrasound Probe Repair

Use this reference to troubleshoot the GE 618e: identify the fault from what you see, judge whether it is typically repairable, and prepare the details needed for a quote.

Manufacturer	GE
Model	618e
Probe type	Endocavity array
Compatible systems	GE Logiq 700

You will usually see the 618e running on GE Logiq 700. Mention the console model with the fault description – connector and revision differences matter.

Endocavity probes like the 618e live through high-level disinfection cycles that attack seals and the lens; fluid ingress is the fault that ends most of them, which is why leak testing matters.

Common failure modes for the 618e

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Noticeably weaker penetration than the paired probe	Reduced acoustic output from element ageing or a delaminating lens	Case by case
Large areas of the array not firing	Extensive element loss across the acoustic stack	Usually not economical
Dark bands or dropout lines in the image	Element dropout, or a conductor break inside the cable	Case by case
Strain relief separated, split or stiff	Flex fatigue where the cable meets the probe or connector	Usually repairable
Split seams or impact marks on the probe body	A drop or knock; housings are routinely replaced or resealed	Usually repairable
Outer cable sheath showing cracks, kinks or staining	Surface jacket wear – the conductors inside are often still good	Usually repairable
Latch or locking hardware damaged on the connector shell	Mechanical damage to the connector shell	Usually repairable
Fluid found inside the probe head after a leak test	Seal failure allowing disinfectant ingress	Case by case
Failed electrical leakage test	Compromised sealing on an endocavity probe	Case by case

Check these before you ship the probe

• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Run the system’s built-in probe test or element check if your console provides one.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Have the probe leak-tested before further use – fluid ingress worsens quickly and creates a patient-safety issue.

Repair, exchange or replace — which applies to your 618e

Whether a 618e is worth repairing depends on the damage scope: localized lens, cable, strain relief and connector faults are routine repairs, while widespread element loss usually is not economical. An exchange unit can bridge the gap when downtime matters, and replacement becomes rational when repair cost approaches replacement value. A written assessment settles this per probe – condition, not model, decides it.

What we need to quote your 618e repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

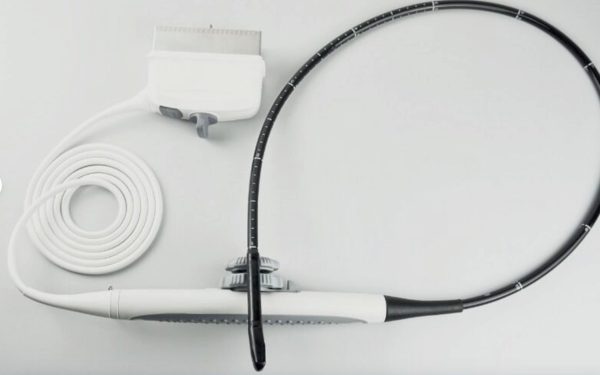

Product imagery on this page is representative of the 618e probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
