GE E8C-RS-ENDO Ultrasound Probe Repair

Before writing off a damaged GE E8C-RS-ENDO, compare its symptoms against the failure modes below. Many lens, cable and connector faults on this probe class are economically repairable.

Manufacturer	GE
Model	E8C-RS-ENDO
Probe type	Endocavity array
Frequency reference	4–10 MHz
Typical applications	OB/GYN, Urology
Compatible systems	GE Venue Go, GE Vivid I BT12, GE Vivid S5, GE Vivid S6, GE Vivid T8
Source record	The Ultrasound Source product record

You will usually see the E8C-RS-ENDO running on GE Venue Go, GE Vivid I BT12, GE Vivid S5, GE Vivid S6, GE Vivid T8. Mention the console model with the fault description – connector and revision differences matter.

Endocavity probes like the E8C-RS-ENDO live through high-level disinfection cycles that attack seals and the lens; fluid ingress is the fault that ends most of them, which is why leak testing matters.

Common failure modes for the E8C-RS-ENDO

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Grainy, low-detail image even after presets are checked	Lens wear or early element degradation	Case by case
Pin damage or corrosion visible in the connector	Mechanical damage from forcing or dropping the connector	Usually repairable
Latch or locking hardware damaged on the connector shell	Broken locking mechanics on the connector housing	Usually repairable
Outer cable sheath showing cracks, kinks or staining	Jacket wear; conductors may still be intact underneath	Usually repairable
Strain relief separated, split or stiff	Flex fatigue where the cable meets the probe or connector	Usually repairable
Air pockets or peeling visible on the acoustic lens	The lens separating from the acoustic stack underneath	Usually repairable
Cracked or dented housing	Impact damage; housing can usually be replaced or resealed	Usually repairable
Fluid found inside the probe head after a leak test	Seal failure allowing disinfectant ingress	Case by case
Failed electrical leakage test	Compromised sealing on an endocavity probe	Case by case

Check these before you ship the probe

• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Have the probe leak-tested before further use – fluid ingress worsens quickly and creates a patient-safety issue.

Repair, exchange or replace — which applies to your E8C-RS-ENDO

Three paths apply to a failing E8C-RS-ENDO: repair (typical for lens, housing, cable and connector damage), exchange (fastest route back to scanning) or replacement (when the acoustic stack is too far gone). The deciding factors are how much of the array still fires, whether the housing is intact and what downtime costs you. Each probe is judged on its actual condition.

What we need to quote your E8C-RS-ENDO repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

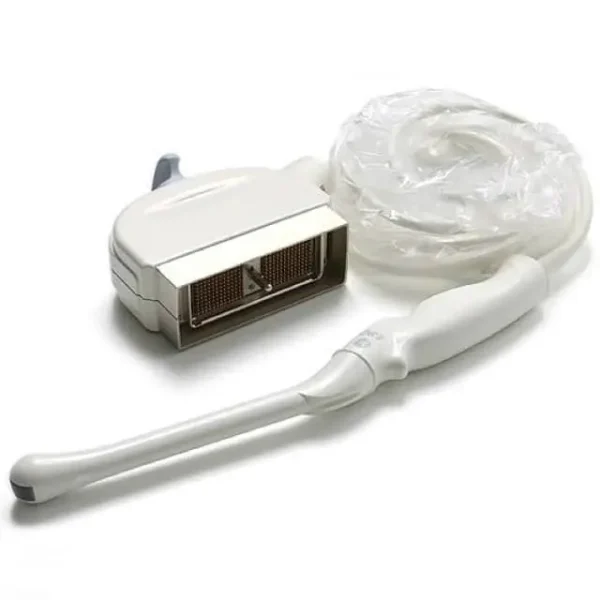

Product imagery on this page is representative of the E8C-RS-ENDO probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
