GE E8CS-SC Ultrasound Probe Repair

Before writing off a damaged GE E8CS-SC, compare its symptoms against the failure modes below. Many lens, cable and connector faults on this probe class are economically repairable.

Manufacturer	GE
Model	E8CS-SC
Probe type	Endocavity array
Compatible systems	GE Venue 40

You will usually see the E8CS-SC running on GE Venue 40. Mention the console model with the fault description – connector and revision differences matter.

For endocavity heads such as the E8CS-SC, reprocessing chemistry is the main enemy – seal integrity and lens condition decide service life more than the electronics do.

Common failure modes for the E8CS-SC

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Image cuts out when the cable is flexed	One or more conductors broken inside the cable bundle	Case by case
Depth performance clearly below what this probe used to deliver	Reduced acoustic output from element ageing or a delaminating lens	Case by case
Whole regions of the image blank across the array width	Extensive element loss across the acoustic stack	Usually not economical
Vertical shadowing or missing scan lines on screen	Failed transducer elements or a broken conductor in the cable	Case by case
Visible nicks, grooves or staining on the lens surface	Mechanical wear or disinfectant damage to the lens	Usually repairable
Cable jacket cracked, wrinkled or discolored	Jacket wear; conductors may still be intact underneath	Usually repairable
Fuzzy or noisy image that cleaning does not fix	A worn lens surface or elements beginning to degrade	Case by case
Fluid found inside the probe head after a leak test	Seal failure allowing disinfectant ingress	Case by case
Failed electrical leakage test	Compromised sealing on an endocavity probe	Case by case

Check these before you ship the probe

• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Run the system’s built-in probe test or element check if your console provides one.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Have the probe leak-tested before further use – fluid ingress worsens quickly and creates a patient-safety issue.

Repair, exchange or replace — which applies to your E8CS-SC

For the E8CS-SC, think in terms of damage depth: surface and cable-level faults are usually repairable at a fraction of replacement cost; acoustic stack failures are evaluated case by case; extensive element loss generally means replacement. Send the symptoms and photos first – that determines the path before anything ships.

What we need to quote your E8CS-SC repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

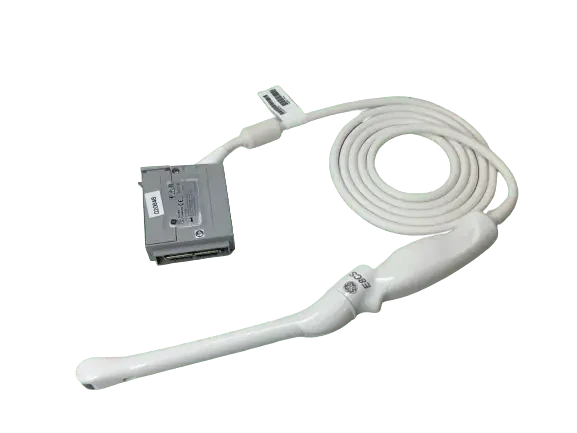

Product imagery on this page is representative of the E8CS-SC probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
