GE M5S-D Ultrasound Probe Repair

The GE M5S-D is a common candidate for repair rather than replacement. This page lists its typical failure modes, self-checks you can run, and the details a repair lab needs from you.

Manufacturer	GE
Model	M5S-D
Compatible systems	LOGIQ E9, Logiq S8, Vivid E9, Voluson E8

In service the M5S-D is most often found on LOGIQ E9, Logiq S8, Vivid E9, Voluson E8. Console-side settings and module revisions still vary, so the exact system build is part of any assessment.

Common failure modes for the M5S-D

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Vertical shadowing or missing scan lines on screen	Failed transducer elements or a broken conductor in the cable	Case by case
Depth performance clearly below what this probe used to deliver	Ageing elements or lens delamination reducing acoustic output	Case by case
Pin damage or corrosion visible in the connector	Connector damage from forced insertion or drops	Usually repairable
Connector lock broken or hardware missing	Mechanical damage to the connector shell	Usually repairable
Large areas of the array not firing	Extensive element loss across the acoustic stack	Usually not economical
Fuzzy or noisy image that cleaning does not fix	Lens wear or early element degradation	Case by case
Cracked or dented housing	A drop or knock; housings are routinely replaced or resealed	Usually repairable

Check these before you ship the probe

• Compare penetration and uniformity against a known-good probe on the same preset.
• Run the system’s built-in probe test or element check if your console provides one.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.

Repair, exchange or replace — which applies to your M5S-D

Three paths apply to a failing M5S-D: repair (typical for lens, housing, cable and connector damage), exchange (fastest route back to scanning) or replacement (when the acoustic stack is too far gone). The deciding factors are how much of the array still fires, whether the housing is intact and what downtime costs you. Each probe is judged on its actual condition.

What we need to quote your M5S-D repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

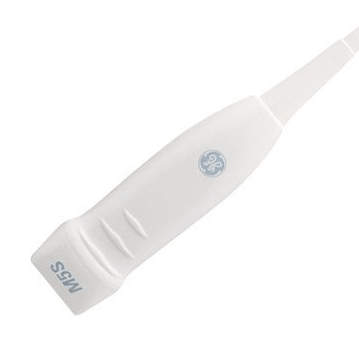

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific M5S-D can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
