GE MTZ 6.5 Ultrasound Probe Repair

The GE MTZ 6.5 is a common candidate for repair rather than replacement. This page lists its typical failure modes, self-checks you can run, and the details a repair lab needs from you.

Manufacturer	GE
Model	MTZ 6.5
Probe type	Endocavity array

Endocavity probes like the MTZ 6.5 live through high-level disinfection cycles that attack seals and the lens; fluid ingress is the fault that ends most of them, which is why leak testing matters.

Common failure modes for the MTZ 6.5

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Outer cable sheath showing cracks, kinks or staining	Jacket wear; conductors may still be intact underneath	Usually repairable
Bubbles or lifting at the lens face	The lens separating from the acoustic stack underneath	Usually repairable
Strain relief separated, split or stiff	Flex fatigue where the cable meets the probe or connector	Usually repairable
Connector lock broken or hardware missing	Broken locking mechanics on the connector housing	Usually repairable
Depth performance clearly below what this probe used to deliver	Reduced acoustic output from element ageing or a delaminating lens	Case by case
Bent, broken or corroded connector pins	Mechanical damage from forcing or dropping the connector	Usually repairable
Intermittent signal that changes as the cable moves	One or more conductors broken inside the cable bundle	Case by case
Fluid found inside the probe head after a leak test	Seal failure allowing disinfectant ingress	Case by case
Failed electrical leakage test	Compromised sealing on an endocavity probe	Case by case

Check these before you ship the probe

• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Run the system’s built-in probe test or element check if your console provides one.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Have the probe leak-tested before further use – fluid ingress worsens quickly and creates a patient-safety issue.

Repair, exchange or replace — which applies to your MTZ 6.5

For the MTZ 6.5, think in terms of damage depth: surface and cable-level faults are usually repairable at a fraction of replacement cost; acoustic stack failures are evaluated case by case; extensive element loss generally means replacement. Send the symptoms and photos first – that determines the path before anything ships.

What we need to quote your MTZ 6.5 repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

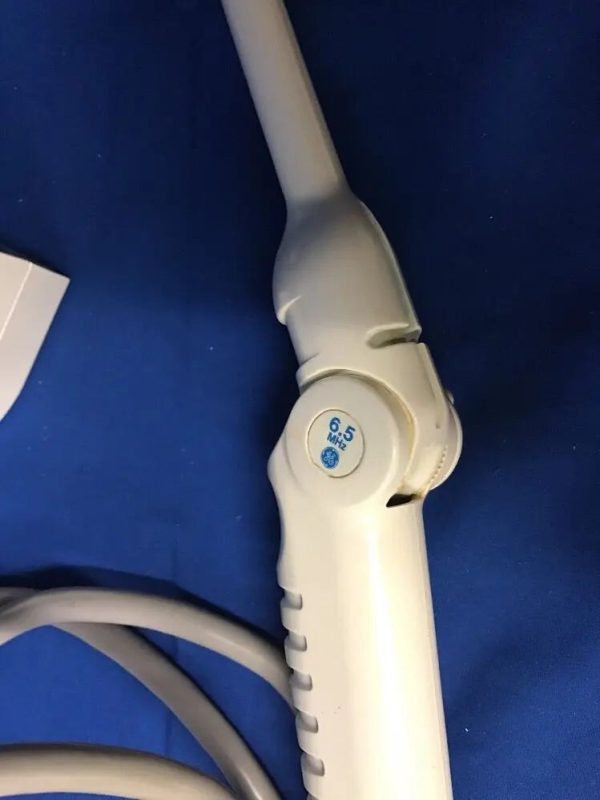

Product imagery on this page is representative of the MTZ 6.5 probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
