GE P6D Pencil/CW Ultrasound Probe Repair

Before writing off a damaged GE P6D Pencil/CW, compare its symptoms against the failure modes below. Many lens, cable and connector faults on this probe class are economically repairable.

Manufacturer	GE
Model	P6D Pencil/CW
Probe type	Pencil/CW array
Compatible systems	LOGIQ E9, Logiq p5, Logiq P6, Logiq S6

You will usually see the P6D Pencil/CW running on LOGIQ E9, Logiq p5, Logiq P6, Logiq S6. Mention the console model with the fault description – connector and revision differences matter.

Pencil CW probes like the P6D Pencil/CW are mechanically simple but cable-dependent – most faults trace to the cable, connector or crystal rather than complex array electronics.

Common failure modes for the P6D Pencil/CW

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Split seams or impact marks on the probe body	A drop or knock; housings are routinely replaced or resealed	Usually repairable
Dark bands or dropout lines in the image	Failed transducer elements or a broken conductor in the cable	Case by case
Outer cable sheath showing cracks, kinks or staining	Jacket wear; conductors may still be intact underneath	Usually repairable
Image cuts out when the cable is flexed	Broken internal conductors in the cable	Case by case
Bent, broken or corroded connector pins	Mechanical damage from forcing or dropping the connector	Usually repairable
Whole regions of the image blank across the array width	Extensive element loss across the acoustic stack	Usually not economical
Cuts, gouges or discoloration on the lens membrane	Wear from use, or chemical attack from disinfectants	Usually repairable

Check these before you ship the probe

• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Run the system’s built-in probe test or element check if your console provides one.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.

Repair, exchange or replace — which applies to your P6D Pencil/CW

Whether a P6D Pencil/CW is worth repairing depends on the damage scope: localized lens, cable, strain relief and connector faults are routine repairs, while widespread element loss usually is not economical. An exchange unit can bridge the gap when downtime matters, and replacement becomes rational when repair cost approaches replacement value. A written assessment settles this per probe – condition, not model, decides it.

What we need to quote your P6D Pencil/CW repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

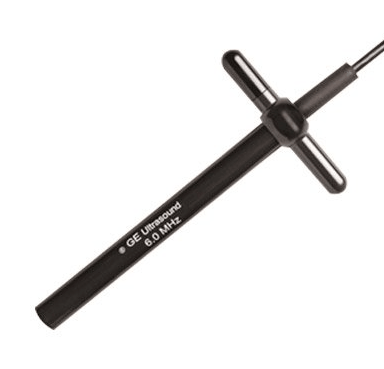

Product imagery on this page is representative of the P6D Pencil/CW probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
