GE RIC5-9W Ultrasound Probe Repair

Before writing off a damaged GE RIC5-9W, compare its symptoms against the failure modes below. Many lens, cable and connector faults on this probe class are economically repairable.

Manufacturer	GE
Model	RIC5-9W
Probe type	Endocavity array
Compatible systems	GE Voluson 730, GE Voluson 730 Expert, GE Voluson 730 Pro, GE Voluson 730 Pro V

You will usually see the RIC5-9W running on GE Voluson 730, GE Voluson 730 Expert, GE Voluson 730 Pro, GE Voluson 730 Pro V. Mention the console model with the fault description – connector and revision differences matter.

For endocavity heads such as the RIC5-9W, reprocessing chemistry is the main enemy – seal integrity and lens condition decide service life more than the electronics do.

Common failure modes for the RIC5-9W

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Visible nicks, grooves or staining on the lens surface	Mechanical wear or disinfectant damage to the lens	Usually repairable
Connector lock broken or hardware missing	Mechanical damage to the connector shell	Usually repairable
Image cuts out when the cable is flexed	Broken internal conductors in the cable	Case by case
Grainy, low-detail image even after presets are checked	A worn lens surface or elements beginning to degrade	Case by case
Split seams or impact marks on the probe body	Impact damage; housing can usually be replaced or resealed	Usually repairable
Bent, broken or corroded connector pins	Mechanical damage from forcing or dropping the connector	Usually repairable
Depth performance clearly below what this probe used to deliver	Reduced acoustic output from element ageing or a delaminating lens	Case by case
Fluid found inside the probe head after a leak test	Seal failure allowing disinfectant ingress	Case by case
Failed electrical leakage test	Compromised sealing on an endocavity probe	Case by case

Check these before you ship the probe

• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Have the probe leak-tested before further use – fluid ingress worsens quickly and creates a patient-safety issue.

Repair, exchange or replace — which applies to your RIC5-9W

Three paths apply to a failing RIC5-9W: repair (typical for lens, housing, cable and connector damage), exchange (fastest route back to scanning) or replacement (when the acoustic stack is too far gone). The deciding factors are how much of the array still fires, whether the housing is intact and what downtime costs you. Each probe is judged on its actual condition.

What we need to quote your RIC5-9W repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

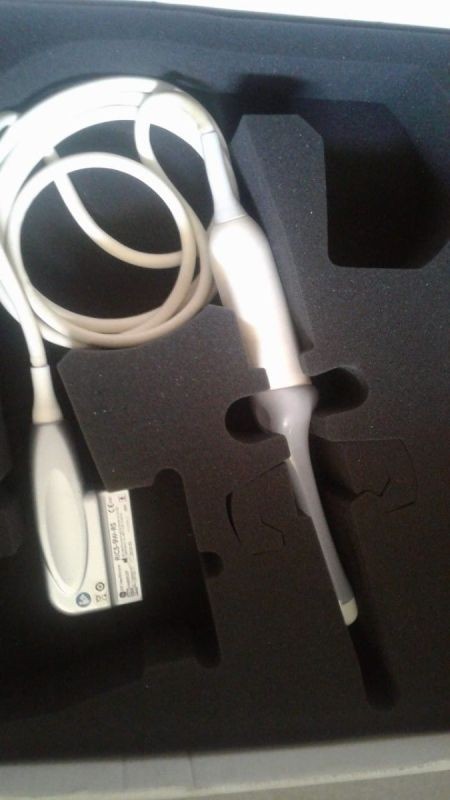

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific RIC5-9W can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
