GE RIC6-12-D Ultrasound Probe Repair

A failing GE RIC6-12-D does not always mean buying a new probe. Use the fault table below to match what you are seeing on screen to a likely cause, then check what a repair assessment would need.

Manufacturer	GE
Model	RIC6-12-D
Compatible systems	edge, Voluson E8, Voluson series

In service the RIC6-12-D is most often found on edge, Voluson E8, Voluson series. Console-side settings and module revisions still vary, so the exact system build is part of any assessment.

Common failure modes for the RIC6-12-D

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Latch or locking hardware damaged on the connector shell	Mechanical damage to the connector shell	Usually repairable
Image cuts out when the cable is flexed	Broken internal conductors in the cable	Case by case
Noticeably weaker penetration than the paired probe	Reduced acoustic output from element ageing or a delaminating lens	Case by case
Strain relief separated, split or stiff	Cable flex fatigue at the probe or connector end	Usually repairable
Dark bands or dropout lines in the image	Failed transducer elements or a broken conductor in the cable	Case by case
Bent, broken or corroded connector pins	Connector damage from forced insertion or drops	Usually repairable
Cuts, gouges or discoloration on the lens membrane	Wear from use, or chemical attack from disinfectants	Usually repairable

Check these before you ship the probe

• Run the system’s built-in probe test or element check if your console provides one.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Compare penetration and uniformity against a known-good probe on the same preset.

Repair, exchange or replace — which applies to your RIC6-12-D

Repair suits the RIC6-12-D when damage is mechanical or confined – lens membrane, strain relief, cable jacket, connector hardware. Once element dropout spreads across large sections of the array, repair cost climbs toward replacement value and stops making sense. If uptime is critical, ask about exchange options while your probe is assessed.

What we need to quote your RIC6-12-D repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

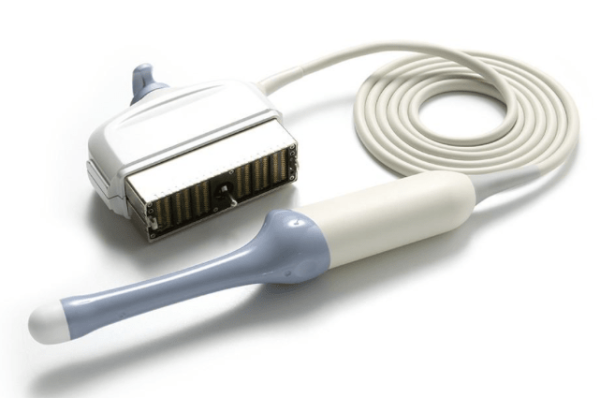

Product imagery on this page is representative of the RIC6-12-D probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
