GE RSP6-16 Ultrasound Probe Repair

A failing GE RSP6-16 does not always mean buying a new probe. Use the fault table below to match what you are seeing on screen to a likely cause, then check what a repair assessment would need.

Manufacturer	GE
Model	RSP6-16
Probe type	Linear array
Compatible systems	GE Voluson 730, GE Voluson 730 Expert, GE Voluson 730 Pro, GE Voluson 730 Pro V

You will usually see the RSP6-16 running on GE Voluson 730, GE Voluson 730 Expert, GE Voluson 730 Pro, GE Voluson 730 Pro V. Mention the console model with the fault description – connector and revision differences matter.

Linear arrays like the RSP6-16 concentrate wear at the lens edges and the cable exit – shallow, high-frequency work means constant handling, and the first faults are usually mechanical rather than acoustic.

Common failure modes for the RSP6-16

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Visible nicks, grooves or staining on the lens surface	Wear from use, or chemical attack from disinfectants	Usually repairable
Dark bands or dropout lines in the image	Element dropout, or a conductor break inside the cable	Case by case
Outer cable sheath showing cracks, kinks or staining	Surface jacket wear – the conductors inside are often still good	Usually repairable
Split seams or impact marks on the probe body	Impact damage; housing can usually be replaced or resealed	Usually repairable
Depth performance clearly below what this probe used to deliver	Reduced acoustic output from element ageing or a delaminating lens	Case by case
Connector lock broken or hardware missing	Broken locking mechanics on the connector housing	Usually repairable
Intermittent signal that changes as the cable moves	One or more conductors broken inside the cable bundle	Case by case

Check these before you ship the probe

• Run the system’s built-in probe test or element check if your console provides one.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.

Repair, exchange or replace — which applies to your RSP6-16

For the RSP6-16, think in terms of damage depth: surface and cable-level faults are usually repairable at a fraction of replacement cost; acoustic stack failures are evaluated case by case; extensive element loss generally means replacement. Send the symptoms and photos first – that determines the path before anything ships.

What we need to quote your RSP6-16 repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

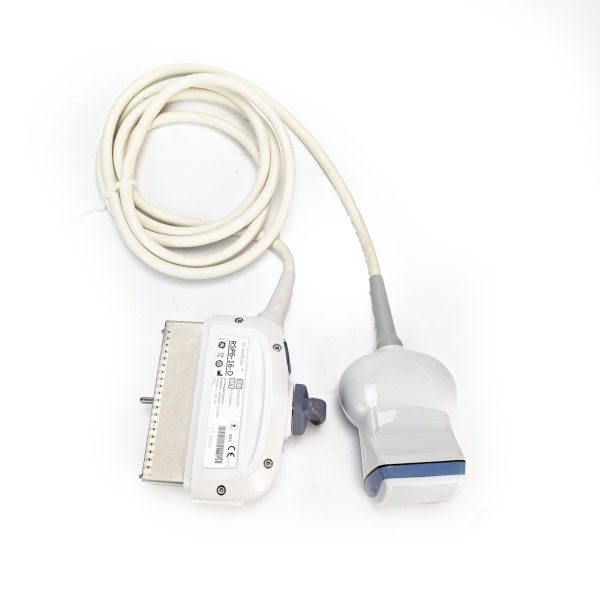

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific RSP6-16 can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
