Hitachi Aloka C41RP Ultrasound Probe Repair

If your Hitachi Aloka C41RP is producing degraded images, failing probe tests or showing physical damage, this page helps you judge what is likely wrong and whether a repair makes sense before you commit to a replacement.

Manufacturer	Hitachi Aloka
Model	C41RP
Probe type	Endocavity array
Compatible systems	Hitachi Aloka Arietta V60, Hitachi Aloka Arietta V70

You will usually see the C41RP running on Hitachi Aloka Arietta V60, Hitachi Aloka Arietta V70. Mention the console model with the fault description – connector and revision differences matter.

For endocavity heads such as the C41RP, reprocessing chemistry is the main enemy – seal integrity and lens condition decide service life more than the electronics do.

Common failure modes for the C41RP

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Grainy, low-detail image even after presets are checked	A worn lens surface or elements beginning to degrade	Case by case
Visible nicks, grooves or staining on the lens surface	Mechanical wear or disinfectant damage to the lens	Usually repairable
Image cuts out when the cable is flexed	One or more conductors broken inside the cable bundle	Case by case
Connector lock broken or hardware missing	Broken locking mechanics on the connector housing	Usually repairable
Outer cable sheath showing cracks, kinks or staining	Surface jacket wear – the conductors inside are often still good	Usually repairable
Bent, broken or corroded connector pins	Connector damage from forced insertion or drops	Usually repairable
Bubbles or lifting at the lens face	The lens separating from the acoustic stack underneath	Usually repairable
Fluid found inside the probe head after a leak test	Seal failure allowing disinfectant ingress	Case by case
Failed electrical leakage test	Compromised sealing on an endocavity probe	Case by case

Check these before you ship the probe

• Compare penetration and uniformity against a known-good probe on the same preset.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Run the system’s built-in probe test or element check if your console provides one.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Have the probe leak-tested before further use – fluid ingress worsens quickly and creates a patient-safety issue.

Repair, exchange or replace — which applies to your C41RP

Three paths apply to a failing C41RP: repair (typical for lens, housing, cable and connector damage), exchange (fastest route back to scanning) or replacement (when the acoustic stack is too far gone). The deciding factors are how much of the array still fires, whether the housing is intact and what downtime costs you. Each probe is judged on its actual condition.

What we need to quote your C41RP repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

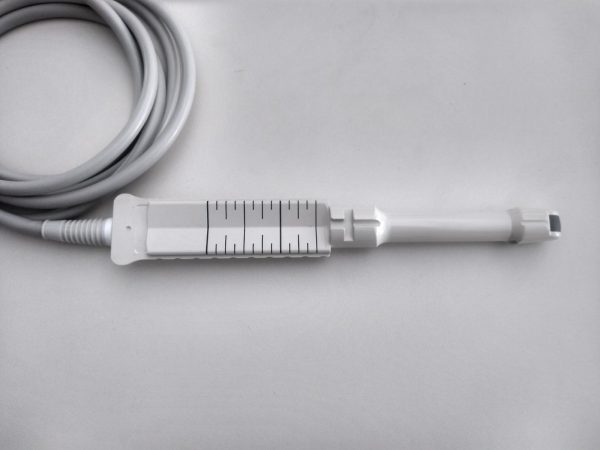

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific C41RP can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
