Hitachi Aloka UST-588U-5 Ultrasound Probe Repair

This page covers the Hitachi Aloka UST-588U-5 from a repair perspective: the failure modes we see on this class of probe, how to check the probe yourself, and what information gets you an accurate repair quote.

Manufacturer	Hitachi Aloka
Model	UST-588U-5
Probe type	Linear array
Compatible systems	Aloka SSD-500, Aloka SSD-500V

The UST-588U-5 typically pairs with Aloka SSD-500, Aloka SSD-500V; the same fault can present differently between console revisions, which is why the host system is asked for with the quote details.

Linear arrays like the UST-588U-5 concentrate wear at the lens edges and the cable exit – shallow, high-frequency work means constant handling, and the first faults are usually mechanical rather than acoustic.

Common failure modes for the UST-588U-5

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Outer cable sheath showing cracks, kinks or staining	Jacket wear; conductors may still be intact underneath	Usually repairable
Image cuts out when the cable is flexed	One or more conductors broken inside the cable bundle	Case by case
Pin damage or corrosion visible in the connector	Connector damage from forced insertion or drops	Usually repairable
Grainy, low-detail image even after presets are checked	Lens wear or early element degradation	Case by case
Bubbles or lifting at the lens face	Lens delamination from the acoustic stack	Usually repairable
Noticeably weaker penetration than the paired probe	Ageing elements or lens delamination reducing acoustic output	Case by case
Strain relief pulling away from the cable or gone rigid	Cable flex fatigue at the probe or connector end	Usually repairable

Check these before you ship the probe

• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Run the system’s built-in probe test or element check if your console provides one.

Repair, exchange or replace — which applies to your UST-588U-5

Whether a UST-588U-5 is worth repairing depends on the damage scope: localized lens, cable, strain relief and connector faults are routine repairs, while widespread element loss usually is not economical. An exchange unit can bridge the gap when downtime matters, and replacement becomes rational when repair cost approaches replacement value. A written assessment settles this per probe – condition, not model, decides it.

What we need to quote your UST-588U-5 repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

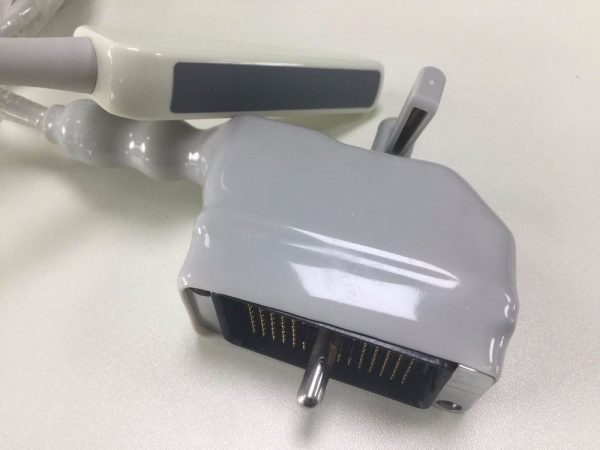

Product imagery on this page is representative of the UST-588U-5 probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
