Hitachi Aloka UST-934N-3.5 Ultrasound Probe Repair

Before writing off a damaged Hitachi Aloka UST-934N-3.5, compare its symptoms against the failure modes below. Many lens, cable and connector faults on this probe class are economically repairable.

Manufacturer	Hitachi Aloka
Model	UST-934N-3.5
Probe type	Convex array
Compatible systems	Aloka SSD-1100, Aloka SSD-500, Aloka SSD-620, Hitachi Aloka Prosound 2

You will usually see the UST-934N-3.5 running on Aloka SSD-1100, Aloka SSD-500, Aloka SSD-620, Hitachi Aloka Prosound 2. Mention the console model with the fault description – connector and revision differences matter.

On convex probes such as the UST-934N-3.5, the curved acoustic window wears unevenly under pressure-heavy scanning; lens condition is the first thing to check when image quality drops.

Common failure modes for the UST-934N-3.5

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Bubbles or lifting at the lens face	Lens delamination from the acoustic stack	Usually repairable
Pin damage or corrosion visible in the connector	Mechanical damage from forcing or dropping the connector	Usually repairable
Fuzzy or noisy image that cleaning does not fix	Lens wear or early element degradation	Case by case
Intermittent signal that changes as the cable moves	One or more conductors broken inside the cable bundle	Case by case
Cracked or dented housing	Impact damage; housing can usually be replaced or resealed	Usually repairable
Strain relief separated, split or stiff	Flex fatigue where the cable meets the probe or connector	Usually repairable
Large areas of the array not firing	Widespread element or acoustic stack failure	Usually not economical

Check these before you ship the probe

• Run the system’s built-in probe test or element check if your console provides one.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Compare penetration and uniformity against a known-good probe on the same preset.

Repair, exchange or replace — which applies to your UST-934N-3.5

Repair suits the UST-934N-3.5 when damage is mechanical or confined – lens membrane, strain relief, cable jacket, connector hardware. Once element dropout spreads across large sections of the array, repair cost climbs toward replacement value and stops making sense. If uptime is critical, ask about exchange options while your probe is assessed.

What we need to quote your UST-934N-3.5 repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

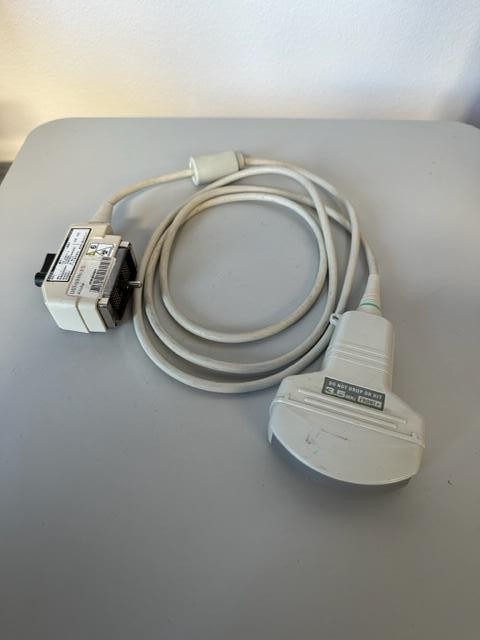

Product imagery on this page is representative of the UST-934N-3.5 probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
