Mindray 6CV1 V10-4 V10-4B Ultrasound Probe Repair

A failing Mindray 6CV1 V10-4 V10-4B does not always mean buying a new probe. Use the fault table below to match what you are seeing on screen to a likely cause, then check what a repair assessment would need.

Manufacturer	Mindray
Model	6CV1 V10-4 V10-4B

Common failure modes for the 6CV1 V10-4 V10-4B

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Strain relief separated, split or stiff	Flex fatigue where the cable meets the probe or connector	Usually repairable
Large areas of the array not firing	Widespread element or acoustic stack failure	Usually not economical
Grainy, low-detail image even after presets are checked	Lens wear or early element degradation	Case by case
Cable jacket cracked, wrinkled or discolored	Surface jacket wear – the conductors inside are often still good	Usually repairable
Connector lock broken or hardware missing	Mechanical damage to the connector shell	Usually repairable
Cuts, gouges or discoloration on the lens membrane	Wear from use, or chemical attack from disinfectants	Usually repairable
Vertical shadowing or missing scan lines on screen	Failed transducer elements or a broken conductor in the cable	Case by case

Check these before you ship the probe

• Run the system’s built-in probe test or element check if your console provides one.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.

Repair, exchange or replace — which applies to your 6CV1 V10-4 V10-4B

Three paths apply to a failing 6CV1 V10-4 V10-4B: repair (typical for lens, housing, cable and connector damage), exchange (fastest route back to scanning) or replacement (when the acoustic stack is too far gone). The deciding factors are how much of the array still fires, whether the housing is intact and what downtime costs you. Each probe is judged on its actual condition.

What we need to quote your 6CV1 V10-4 V10-4B repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

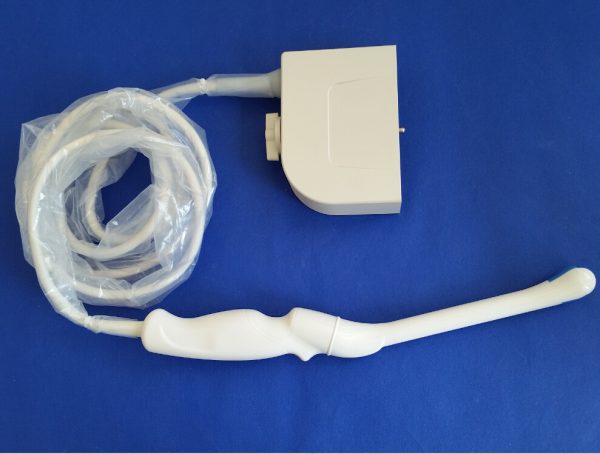

Product imagery on this page is representative of the 6CV1 V10-4 V10-4B probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
