Mindray C5-1s Ultrasound Probe Repair

This page covers the Mindray C5-1s from a repair perspective: the failure modes we see on this class of probe, how to check the probe yourself, and what information gets you an accurate repair quote.

Manufacturer	Mindray
Model	C5-1s
Probe type	Convex array

Curved arrays like the C5-1s see heavy abdominal duty, and the curved lens face takes the brunt of it – delamination and membrane wear typically show up before element failures do.

Common failure modes for the C5-1s

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Grainy, low-detail image even after presets are checked	Lens wear or early element degradation	Case by case
Visible nicks, grooves or staining on the lens surface	Mechanical wear or disinfectant damage to the lens	Usually repairable
Outer cable sheath showing cracks, kinks or staining	Jacket wear; conductors may still be intact underneath	Usually repairable
Vertical shadowing or missing scan lines on screen	Failed transducer elements or a broken conductor in the cable	Case by case
Pin damage or corrosion visible in the connector	Mechanical damage from forcing or dropping the connector	Usually repairable
Whole regions of the image blank across the array width	Extensive element loss across the acoustic stack	Usually not economical
Air pockets or peeling visible on the acoustic lens	Lens delamination from the acoustic stack	Usually repairable

Check these before you ship the probe

• Compare penetration and uniformity against a known-good probe on the same preset.
• Run the system’s built-in probe test or element check if your console provides one.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.

Repair, exchange or replace — which applies to your C5-1s

Repair suits the C5-1s when damage is mechanical or confined – lens membrane, strain relief, cable jacket, connector hardware. Once element dropout spreads across large sections of the array, repair cost climbs toward replacement value and stops making sense. If uptime is critical, ask about exchange options while your probe is assessed.

What we need to quote your C5-1s repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

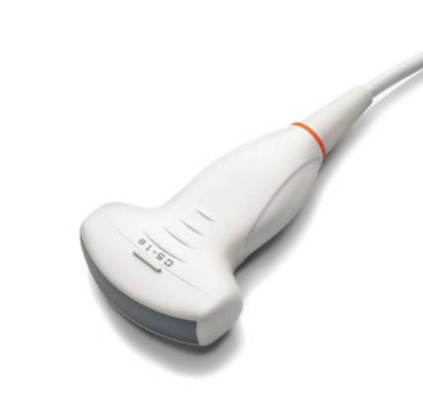

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific C5-1s can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
