Mindray D6-2e Ultrasound Probe Repair

This page covers the Mindray D6-2e from a repair perspective: the failure modes we see on this class of probe, how to check the probe yourself, and what information gets you an accurate repair quote.

Manufacturer	Mindray
Model	D6-2e
Probe type	Convex array
Compatible systems	DC-70, DC-8

The D6-2e typically pairs with DC-70, DC-8; the same fault can present differently between console revisions, which is why the host system is asked for with the quote details.

Curved arrays like the D6-2e see heavy abdominal duty, and the curved lens face takes the brunt of it – delamination and membrane wear typically show up before element failures do.

Common failure modes for the D6-2e

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Intermittent signal that changes as the cable moves	One or more conductors broken inside the cable bundle	Case by case
Cable jacket cracked, wrinkled or discolored	Surface jacket wear – the conductors inside are often still good	Usually repairable
Visible nicks, grooves or staining on the lens surface	Mechanical wear or disinfectant damage to the lens	Usually repairable
Depth performance clearly below what this probe used to deliver	Ageing elements or lens delamination reducing acoustic output	Case by case
Pin damage or corrosion visible in the connector	Connector damage from forced insertion or drops	Usually repairable
Split seams or impact marks on the probe body	Impact damage; housing can usually be replaced or resealed	Usually repairable
Whole regions of the image blank across the array width	Extensive element loss across the acoustic stack	Usually not economical

Check these before you ship the probe

• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.

Repair, exchange or replace — which applies to your D6-2e

Repair suits the D6-2e when damage is mechanical or confined – lens membrane, strain relief, cable jacket, connector hardware. Once element dropout spreads across large sections of the array, repair cost climbs toward replacement value and stops making sense. If uptime is critical, ask about exchange options while your probe is assessed.

What we need to quote your D6-2e repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

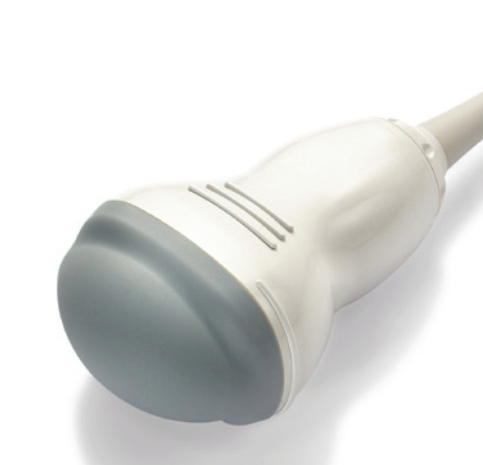

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific D6-2e can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
