Mindray SP5-1e Ultrasound Probe Repair

A failing Mindray SP5-1e does not always mean buying a new probe. Use the fault table below to match what you are seeing on screen to a likely cause, then check what a repair assessment would need.

Manufacturer	Mindray
Model	SP5-1e
Probe type	Phased Array
Compatible systems	DC-8

You will usually see the SP5-1e running on DC-8. Mention the console model with the fault description – connector and revision differences matter.

Compact phased-array heads such as the SP5-1e are sensitive to element dropout at the sector edges, and round-the-clock cardiac use is hard on cables and strain reliefs.

Common failure modes for the SP5-1e

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Grainy, low-detail image even after presets are checked	Lens wear or early element degradation	Case by case
Strain relief separated, split or stiff	Flex fatigue where the cable meets the probe or connector	Usually repairable
Large areas of the array not firing	Extensive element loss across the acoustic stack	Usually not economical
Pin damage or corrosion visible in the connector	Connector damage from forced insertion or drops	Usually repairable
Cuts, gouges or discoloration on the lens membrane	Wear from use, or chemical attack from disinfectants	Usually repairable
Air pockets or peeling visible on the acoustic lens	The lens separating from the acoustic stack underneath	Usually repairable
Noticeably weaker penetration than the paired probe	Ageing elements or lens delamination reducing acoustic output	Case by case
Sector image narrows or loses the apex	Element failure concentrated at the array edge	Case by case

Check these before you ship the probe

• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Run the system’s built-in probe test or element check if your console provides one.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.

Repair, exchange or replace — which applies to your SP5-1e

For the SP5-1e, think in terms of damage depth: surface and cable-level faults are usually repairable at a fraction of replacement cost; acoustic stack failures are evaluated case by case; extensive element loss generally means replacement. Send the symptoms and photos first – that determines the path before anything ships.

What we need to quote your SP5-1e repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

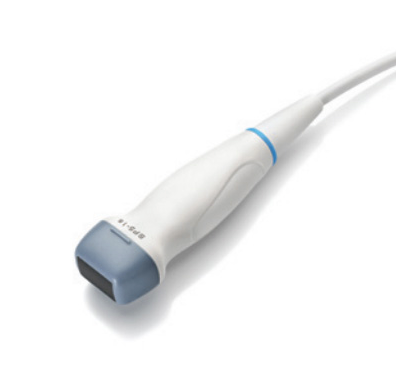

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific SP5-1e can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
