Philips C10-4EC Ultrasound Probe Repair
Fault diagnosis and repair options for the Philips C10-4EC: failure modes, self-checks and what an assessment needs.
Table of Contents
PRODUCT DETAILS
Supply Ability
Supply Ability 5000 Unit/Units per Year
Packaging & Delivery
| Packaging Details | Common Box |
| Port | Hongkong |
| Picture Example: |   |
DESCRIPTION
This page covers the Philips C10-4EC from a repair perspective: the failure modes we see on this class of probe, how to check the probe yourself, and what information gets you an accurate repair quote.
| Manufacturer | Philips |
|---|---|
| Model | C10-4EC |
| Probe type | Endocavity array |
| Compatible systems | Epiq 5, Epiq 7 |
You will usually see the C10-4EC running on Epiq 5, Epiq 7. Mention the console model with the fault description – connector and revision differences matter.
Endocavity probes like the C10-4EC live through high-level disinfection cycles that attack seals and the lens; fluid ingress is the fault that ends most of them, which is why leak testing matters.
Common failure modes for the C10-4EC
Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.
| What you see | Likely cause | Typically repairable? |
|---|---|---|
| Cuts, gouges or discoloration on the lens membrane | Mechanical wear or disinfectant damage to the lens | Usually repairable |
| Cable jacket cracked, wrinkled or discolored | Jacket wear; conductors may still be intact underneath | Usually repairable |
| Grainy, low-detail image even after presets are checked | Lens wear or early element degradation | Case by case |
| Image cuts out when the cable is flexed | Broken internal conductors in the cable | Case by case |
| Bent, broken or corroded connector pins | Connector damage from forced insertion or drops | Usually repairable |
| Cracked or dented housing | A drop or knock; housings are routinely replaced or resealed | Usually repairable |
| Strain relief separated, split or stiff | Cable flex fatigue at the probe or connector end | Usually repairable |
| Fluid found inside the probe head after a leak test | Seal failure allowing disinfectant ingress | Case by case |
| Failed electrical leakage test | Compromised sealing on an endocavity probe | Case by case |
Check these before you ship the probe
- Compare penetration and uniformity against a known-good probe on the same preset.
- Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
- Run the system’s built-in probe test or element check if your console provides one.
- Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
- Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
- Have the probe leak-tested before further use – fluid ingress worsens quickly and creates a patient-safety issue.
Repair, exchange or replace — which applies to your C10-4EC
Whether a C10-4EC is worth repairing depends on the damage scope: localized lens, cable, strain relief and connector faults are routine repairs, while widespread element loss usually is not economical. An exchange unit can bridge the gap when downtime matters, and replacement becomes rational when repair cost approaches replacement value. A written assessment settles this per probe – condition, not model, decides it.
What we need to quote your C10-4EC repair
- A clear photo of the complete manufacturer and model label on the probe
- A description of the fault: what you see on screen and when it started
- The ultrasound system (console) the probe is used with
- Screenshots or photos of the image problem, if the fault is visual
- Photos of any physical damage – lens, housing, cable or connector

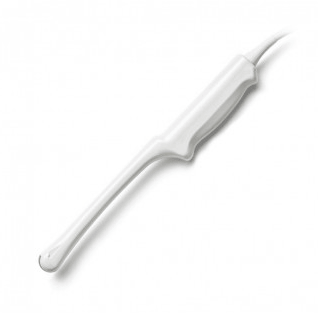

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific C10-4EC can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
