Philips LAP L9-5 Ultrasound Probe Repair

This page covers the Philips LAP L9-5 from a repair perspective: the failure modes we see on this class of probe, how to check the probe yourself, and what information gets you an accurate repair quote.

Manufacturer	Philips
Model	LAP L9-5
Probe type	Linear array
Compatible systems	ATL HDI-5000

The LAP L9-5 typically pairs with ATL HDI-5000; the same fault can present differently between console revisions, which is why the host system is asked for with the quote details.

On linear probes such as the LAP L9-5, superficial imaging workloads put steady stress on the lens membrane and strain relief; the element electronics tend to outlast the mechanical parts.

Common failure modes for the LAP L9-5

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Cable jacket cracked, wrinkled or discolored	Jacket wear; conductors may still be intact underneath	Usually repairable
Bubbles or lifting at the lens face	The lens separating from the acoustic stack underneath	Usually repairable
Cracked or dented housing	A drop or knock; housings are routinely replaced or resealed	Usually repairable
Strain relief separated, split or stiff	Cable flex fatigue at the probe or connector end	Usually repairable
Bent, broken or corroded connector pins	Mechanical damage from forcing or dropping the connector	Usually repairable
Intermittent signal that changes as the cable moves	One or more conductors broken inside the cable bundle	Case by case
Depth performance clearly below what this probe used to deliver	Reduced acoustic output from element ageing or a delaminating lens	Case by case

Check these before you ship the probe

• Compare penetration and uniformity against a known-good probe on the same preset.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Run the system’s built-in probe test or element check if your console provides one.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.

Repair, exchange or replace — which applies to your LAP L9-5

Whether a LAP L9-5 is worth repairing depends on the damage scope: localized lens, cable, strain relief and connector faults are routine repairs, while widespread element loss usually is not economical. An exchange unit can bridge the gap when downtime matters, and replacement becomes rational when repair cost approaches replacement value. A written assessment settles this per probe – condition, not model, decides it.

What we need to quote your LAP L9-5 repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

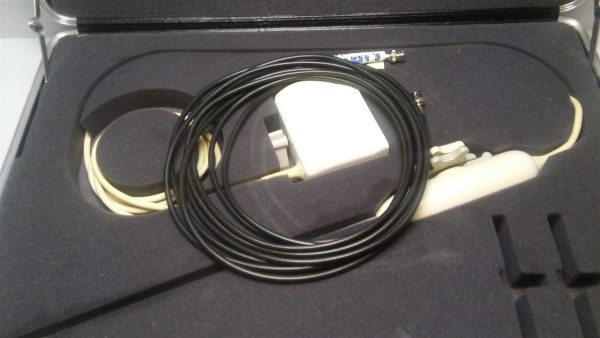

Product imagery on this page is representative of the LAP L9-5 probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
