Philips S8-3t Ultrasound Probe Repair

The Philips S8-3t is a common candidate for repair rather than replacement. This page lists its typical failure modes, self-checks you can run, and the details a repair lab needs from you.

Manufacturer	Philips
Model	S8-3t
Probe type	TEE array
Compatible systems	Philips iE33

The S8-3t typically pairs with Philips iE33; the same fault can present differently between console revisions, which is why the host system is asked for with the quote details.

On TEE heads such as the S8-3t, articulation cables, tube integrity and bite damage dominate the fault picture; electrical leak testing is non-negotiable after any suspected breach.

Common failure modes for the S8-3t

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Noticeably weaker penetration than the paired probe	Reduced acoustic output from element ageing or a delaminating lens	Case by case
Visible nicks, grooves or staining on the lens surface	Mechanical wear or disinfectant damage to the lens	Usually repairable
Whole regions of the image blank across the array width	Extensive element loss across the acoustic stack	Usually not economical
Strain relief separated, split or stiff	Flex fatigue where the cable meets the probe or connector	Usually repairable
Fuzzy or noisy image that cleaning does not fix	A worn lens surface or elements beginning to degrade	Case by case
Pin damage or corrosion visible in the connector	Mechanical damage from forcing or dropping the connector	Usually repairable
Bubbles or lifting at the lens face	Lens delamination from the acoustic stack	Usually repairable
Bite marks or punctures on the insertion tube	Patient bite damage to the flexible shaft	Case by case
Tip articulation stiff, loose or unresponsive	Worn or broken articulation cables	Case by case
Failed leak test on a TEE probe	Breach in the insertion tube or tip sealing	Case by case

Check these before you ship the probe

• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Run the system’s built-in probe test or element check if your console provides one.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Do not continue clinical use after suspected bite damage; note the articulation behaviour (stiff, loose, unresponsive) for the assessment.

Repair, exchange or replace — which applies to your S8-3t

For the S8-3t, think in terms of damage depth: surface and cable-level faults are usually repairable at a fraction of replacement cost; acoustic stack failures are evaluated case by case; extensive element loss generally means replacement. Send the symptoms and photos first – that determines the path before anything ships.

What we need to quote your S8-3t repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

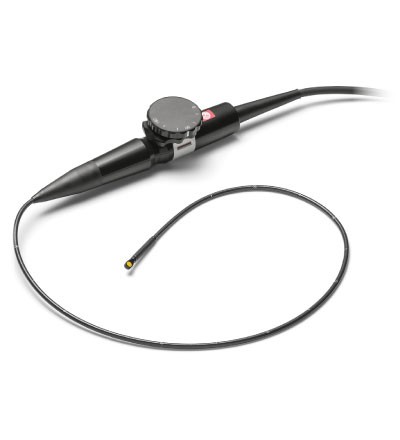

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific S8-3t can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
