Samsung Medison AKEV4-9 10ED Ultrasound Probe Repair

Before writing off a damaged Samsung Medison AKEV4-9 10ED, compare its symptoms against the failure modes below. Many lens, cable and connector faults on this probe class are economically repairable.

Manufacturer	Samsung Medison
Model	AKEV4-9 10ED

Common failure modes for the AKEV4-9 10ED

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Depth performance clearly below what this probe used to deliver	Reduced acoustic output from element ageing or a delaminating lens	Case by case
Split seams or impact marks on the probe body	A drop or knock; housings are routinely replaced or resealed	Usually repairable
Vertical shadowing or missing scan lines on screen	Failed transducer elements or a broken conductor in the cable	Case by case
Bubbles or lifting at the lens face	The lens separating from the acoustic stack underneath	Usually repairable
Whole regions of the image blank across the array width	Widespread element or acoustic stack failure	Usually not economical
Fuzzy or noisy image that cleaning does not fix	Lens wear or early element degradation	Case by case
Connector lock broken or hardware missing	Mechanical damage to the connector shell	Usually repairable

Check these before you ship the probe

• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Run the system’s built-in probe test or element check if your console provides one.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.

Repair, exchange or replace — which applies to your AKEV4-9 10ED

Three paths apply to a failing AKEV4-9 10ED: repair (typical for lens, housing, cable and connector damage), exchange (fastest route back to scanning) or replacement (when the acoustic stack is too far gone). The deciding factors are how much of the array still fires, whether the housing is intact and what downtime costs you. Each probe is judged on its actual condition.

What we need to quote your AKEV4-9 10ED repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

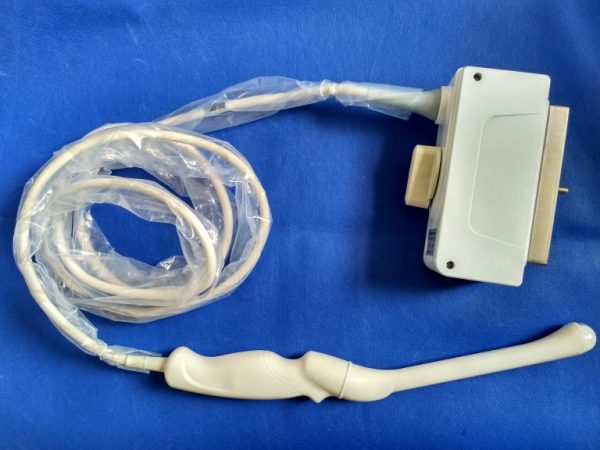

Product imagery on this page is representative of the AKEV4-9 10ED probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
