Samsung Medison C3-7EP Ultrasound Probe Repair

Use this reference to troubleshoot the Samsung Medison C3-7EP: identify the fault from what you see, judge whether it is typically repairable, and prepare the details needed for a quote.

Manufacturer	Samsung Medison
Model	C3-7EP
Probe type	Convex array
Compatible systems	Medison SonoAce SA-8000, Medison SonoAce SA-8000EX, Medison SonoAce SA-8000SE, Medison SonoAce X6

In service the C3-7EP is most often found on Medison SonoAce SA-8000, Medison SonoAce SA-8000EX, Medison SonoAce SA-8000SE, Medison SonoAce X6. Console-side settings and module revisions still vary, so the exact system build is part of any assessment.

Curved arrays like the C3-7EP see heavy abdominal duty, and the curved lens face takes the brunt of it – delamination and membrane wear typically show up before element failures do.

Common failure modes for the C3-7EP

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Grainy, low-detail image even after presets are checked	A worn lens surface or elements beginning to degrade	Case by case
Image cuts out when the cable is flexed	Broken internal conductors in the cable	Case by case
Cable jacket cracked, wrinkled or discolored	Jacket wear; conductors may still be intact underneath	Usually repairable
Vertical shadowing or missing scan lines on screen	Element dropout, or a conductor break inside the cable	Case by case
Large areas of the array not firing	Extensive element loss across the acoustic stack	Usually not economical
Connector lock broken or hardware missing	Broken locking mechanics on the connector housing	Usually repairable
Visible nicks, grooves or staining on the lens surface	Wear from use, or chemical attack from disinfectants	Usually repairable

Check these before you ship the probe

• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.

Repair, exchange or replace — which applies to your C3-7EP

For the C3-7EP, think in terms of damage depth: surface and cable-level faults are usually repairable at a fraction of replacement cost; acoustic stack failures are evaluated case by case; extensive element loss generally means replacement. Send the symptoms and photos first – that determines the path before anything ships.

What we need to quote your C3-7EP repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

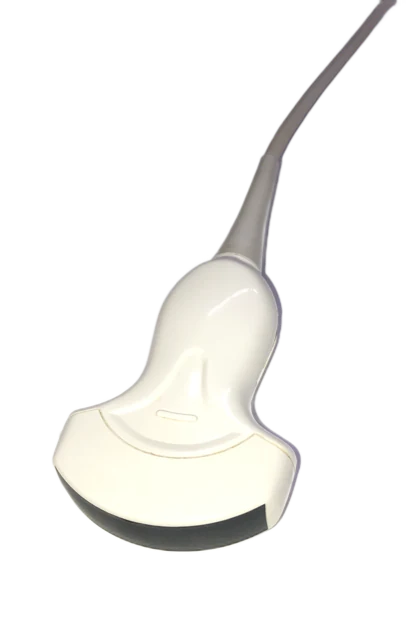

Product imagery on this page is representative of the C3-7EP probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
