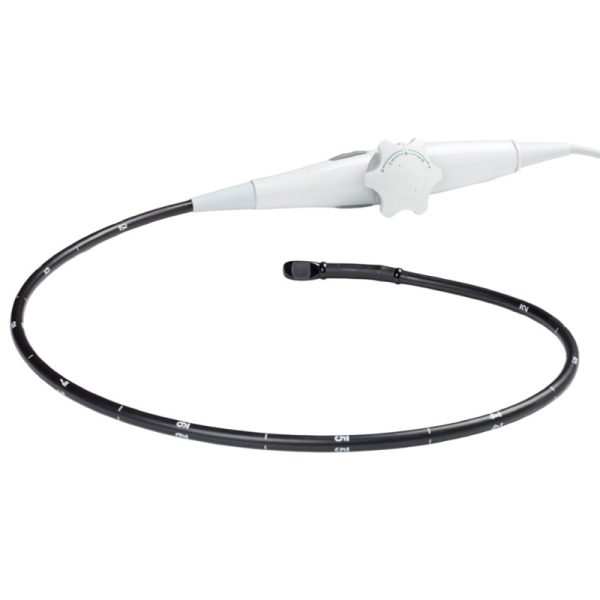

Siemens (Acuson) Z6Ms Ultrasound Probe Repair

This page covers the Siemens (Acuson) Z6Ms from a repair perspective: the failure modes we see on this class of probe, how to check the probe yourself, and what information gets you an accurate repair quote.

Manufacturer	Siemens (Acuson)
Model	(Acuson) Z6Ms
Probe type	TEE array
Compatible systems	Siemens Acuson SC2000

In service the (Acuson) Z6Ms is most often found on Siemens Acuson SC2000. Console-side settings and module revisions still vary, so the exact system build is part of any assessment.

TEE probes like the (Acuson) Z6Ms combine articulation mechanics, a long insertion tube and bite exposure – three failure paths surface probes never face, and the reason TEE repairs are assessed with extra care.

Common failure modes for the (Acuson) Z6Ms

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Image cuts out when the cable is flexed	One or more conductors broken inside the cable bundle	Case by case
Latch or locking hardware damaged on the connector shell	Broken locking mechanics on the connector housing	Usually repairable
Whole regions of the image blank across the array width	Widespread element or acoustic stack failure	Usually not economical
Vertical shadowing or missing scan lines on screen	Failed transducer elements or a broken conductor in the cable	Case by case
Strain relief pulling away from the cable or gone rigid	Flex fatigue where the cable meets the probe or connector	Usually repairable
Split seams or impact marks on the probe body	Impact damage; housing can usually be replaced or resealed	Usually repairable
Noticeably weaker penetration than the paired probe	Reduced acoustic output from element ageing or a delaminating lens	Case by case
Bite marks or punctures on the insertion tube	Patient bite damage to the flexible shaft	Case by case
Tip articulation stiff, loose or unresponsive	Worn or broken articulation cables	Case by case
Failed leak test on a TEE probe	Breach in the insertion tube or tip sealing	Case by case

Check these before you ship the probe

• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Run the system’s built-in probe test or element check if your console provides one.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Do not continue clinical use after suspected bite damage; note the articulation behaviour (stiff, loose, unresponsive) for the assessment.

Repair, exchange or replace — which applies to your (Acuson) Z6Ms

For the (Acuson) Z6Ms, think in terms of damage depth: surface and cable-level faults are usually repairable at a fraction of replacement cost; acoustic stack failures are evaluated case by case; extensive element loss generally means replacement. Send the symptoms and photos first – that determines the path before anything ships.

What we need to quote your (Acuson) Z6Ms repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific (Acuson) Z6Ms can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
