Sonoscape 10L2 Ultrasound Probe Repair

If your Sonoscape 10L2 is producing degraded images, failing probe tests or showing physical damage, this page helps you judge what is likely wrong and whether a repair makes sense before you commit to a replacement.

Manufacturer	Sonoscape
Model	10L2
Probe type	Linear array
Compatible systems	Sonoscape A6

In service the 10L2 is most often found on Sonoscape A6. Console-side settings and module revisions still vary, so the exact system build is part of any assessment.

Linear arrays like the 10L2 concentrate wear at the lens edges and the cable exit – shallow, high-frequency work means constant handling, and the first faults are usually mechanical rather than acoustic.

Common failure modes for the 10L2

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Outer cable sheath showing cracks, kinks or staining	Jacket wear; conductors may still be intact underneath	Usually repairable
Image cuts out when the cable is flexed	One or more conductors broken inside the cable bundle	Case by case
Large areas of the array not firing	Widespread element or acoustic stack failure	Usually not economical
Strain relief pulling away from the cable or gone rigid	Cable flex fatigue at the probe or connector end	Usually repairable
Grainy, low-detail image even after presets are checked	Lens wear or early element degradation	Case by case
Noticeably weaker penetration than the paired probe	Ageing elements or lens delamination reducing acoustic output	Case by case
Visible nicks, grooves or staining on the lens surface	Mechanical wear or disinfectant damage to the lens	Usually repairable

Check these before you ship the probe

• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Run the system’s built-in probe test or element check if your console provides one.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.

Repair, exchange or replace — which applies to your 10L2

Three paths apply to a failing 10L2: repair (typical for lens, housing, cable and connector damage), exchange (fastest route back to scanning) or replacement (when the acoustic stack is too far gone). The deciding factors are how much of the array still fires, whether the housing is intact and what downtime costs you. Each probe is judged on its actual condition.

What we need to quote your 10L2 repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

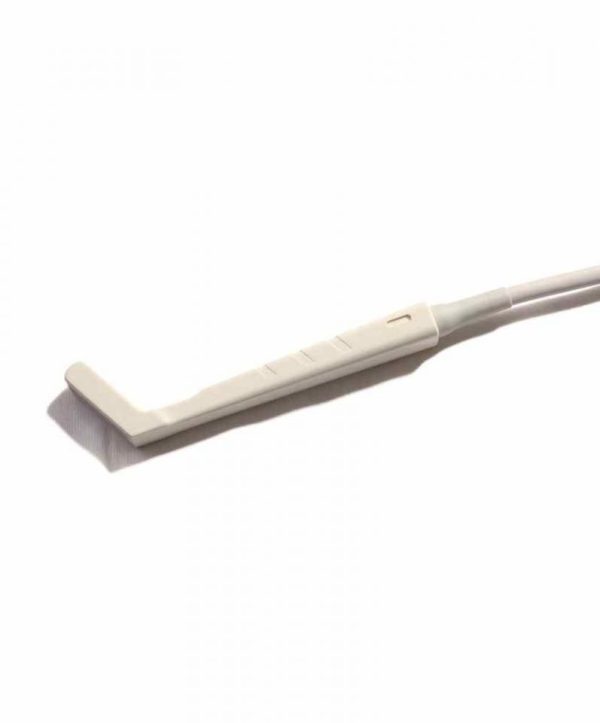

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific 10L2 can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
