Sonosite TEEx Ultrasound Probe Repair

Before writing off a damaged Sonosite TEEx, compare its symptoms against the failure modes below. Many lens, cable and connector faults on this probe class are economically repairable.

Manufacturer	Sonosite
Model	TEEx
Probe type	TEE array
Compatible systems	SonoSite Edge, SonoSite M-Turbo, Sonosite SII

The TEEx typically pairs with SonoSite Edge, SonoSite M-Turbo, Sonosite SII; the same fault can present differently between console revisions, which is why the host system is asked for with the quote details.

TEE probes like the TEEx combine articulation mechanics, a long insertion tube and bite exposure – three failure paths surface probes never face, and the reason TEE repairs are assessed with extra care.

Common failure modes for the TEEx

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Latch or locking hardware damaged on the connector shell	Mechanical damage to the connector shell	Usually repairable
Image cuts out when the cable is flexed	Broken internal conductors in the cable	Case by case
Whole regions of the image blank across the array width	Extensive element loss across the acoustic stack	Usually not economical
Bent, broken or corroded connector pins	Connector damage from forced insertion or drops	Usually repairable
Vertical shadowing or missing scan lines on screen	Failed transducer elements or a broken conductor in the cable	Case by case
Depth performance clearly below what this probe used to deliver	Reduced acoustic output from element ageing or a delaminating lens	Case by case
Strain relief separated, split or stiff	Flex fatigue where the cable meets the probe or connector	Usually repairable
Bite marks or punctures on the insertion tube	Patient bite damage to the flexible shaft	Case by case
Tip articulation stiff, loose or unresponsive	Worn or broken articulation cables	Case by case
Failed leak test on a TEE probe	Breach in the insertion tube or tip sealing	Case by case

Check these before you ship the probe

• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Do not continue clinical use after suspected bite damage; note the articulation behaviour (stiff, loose, unresponsive) for the assessment.

Repair, exchange or replace — which applies to your TEEx

Whether a TEEx is worth repairing depends on the damage scope: localized lens, cable, strain relief and connector faults are routine repairs, while widespread element loss usually is not economical. An exchange unit can bridge the gap when downtime matters, and replacement becomes rational when repair cost approaches replacement value. A written assessment settles this per probe – condition, not model, decides it.

What we need to quote your TEEx repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

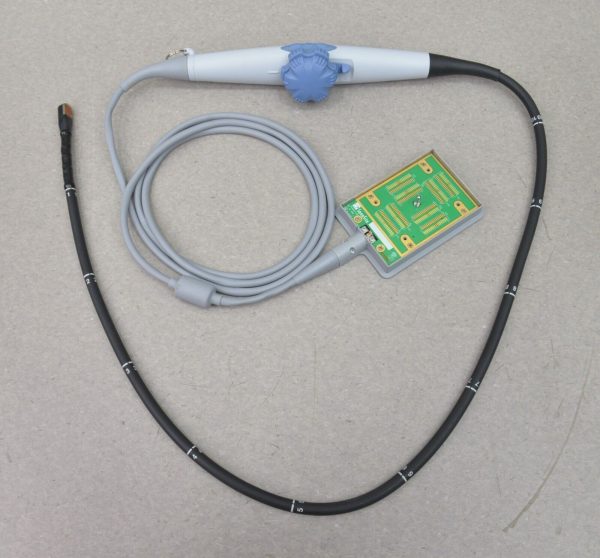

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific TEEx can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
