Toshiba PET-508MA Ultrasound Probe Repair

This page covers the Toshiba PET-508MA from a repair perspective: the failure modes we see on this class of probe, how to check the probe yourself, and what information gets you an accurate repair quote.

Manufacturer	Toshiba
Model	PET-508MA
Probe type	TEE array
Compatible systems	Toshiba Aplio 50 (SSA-700A), Toshiba Aplio 80 (SSA-770A), Toshiba Aplio XG (SSA-790A), Toshiba Artida (SSH-880CV), Toshiba Xario (SSA-660A), Toshiba Xario XG (SSA-680A)

In service the PET-508MA is most often found on Toshiba Aplio 50 (SSA-700A), Toshiba Aplio 80 (SSA-770A), Toshiba Aplio XG (SSA-790A), Toshiba Artida (SSH-880CV), Toshiba Xario (SSA-660A) and other listed systems. Console-side settings and module revisions still vary, so the exact system build is part of any assessment.

TEE probes like the PET-508MA combine articulation mechanics, a long insertion tube and bite exposure – three failure paths surface probes never face, and the reason TEE repairs are assessed with extra care.

Common failure modes for the PET-508MA

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Dark bands or dropout lines in the image	Element dropout, or a conductor break inside the cable	Case by case
Large areas of the array not firing	Widespread element or acoustic stack failure	Usually not economical
Pin damage or corrosion visible in the connector	Mechanical damage from forcing or dropping the connector	Usually repairable
Connector lock broken or hardware missing	Mechanical damage to the connector shell	Usually repairable
Strain relief pulling away from the cable or gone rigid	Cable flex fatigue at the probe or connector end	Usually repairable
Depth performance clearly below what this probe used to deliver	Reduced acoustic output from element ageing or a delaminating lens	Case by case
Bubbles or lifting at the lens face	The lens separating from the acoustic stack underneath	Usually repairable
Bite marks or punctures on the insertion tube	Patient bite damage to the flexible shaft	Case by case
Tip articulation stiff, loose or unresponsive	Worn or broken articulation cables	Case by case
Failed leak test on a TEE probe	Breach in the insertion tube or tip sealing	Case by case

Check these before you ship the probe

• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Do not continue clinical use after suspected bite damage; note the articulation behaviour (stiff, loose, unresponsive) for the assessment.

Repair, exchange or replace — which applies to your PET-508MA

Repair suits the PET-508MA when damage is mechanical or confined – lens membrane, strain relief, cable jacket, connector hardware. Once element dropout spreads across large sections of the array, repair cost climbs toward replacement value and stops making sense. If uptime is critical, ask about exchange options while your probe is assessed.

What we need to quote your PET-508MA repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

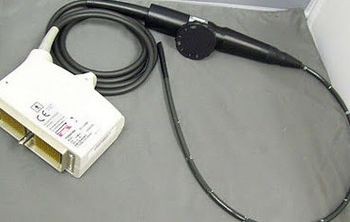

Product imagery on this page is representative of the PET-508MA probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
