Toshiba PLF-805ST Ultrasound Probe Repair

If your Toshiba PLF-805ST is producing degraded images, failing probe tests or showing physical damage, this page helps you judge what is likely wrong and whether a repair makes sense before you commit to a replacement.

Manufacturer	Toshiba
Model	PLF-805ST
Probe type	Linear array
Compatible systems	Toshiba CoreVision (SSA-350A), Toshiba Eccocee (SSA-340A)

In service the PLF-805ST is most often found on Toshiba CoreVision (SSA-350A), Toshiba Eccocee (SSA-340A). Console-side settings and module revisions still vary, so the exact system build is part of any assessment.

On linear probes such as the PLF-805ST, superficial imaging workloads put steady stress on the lens membrane and strain relief; the element electronics tend to outlast the mechanical parts.

Common failure modes for the PLF-805ST

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Air pockets or peeling visible on the acoustic lens	Lens delamination from the acoustic stack	Usually repairable
Image cuts out when the cable is flexed	One or more conductors broken inside the cable bundle	Case by case
Pin damage or corrosion visible in the connector	Mechanical damage from forcing or dropping the connector	Usually repairable
Depth performance clearly below what this probe used to deliver	Reduced acoustic output from element ageing or a delaminating lens	Case by case
Fuzzy or noisy image that cleaning does not fix	A worn lens surface or elements beginning to degrade	Case by case
Dark bands or dropout lines in the image	Failed transducer elements or a broken conductor in the cable	Case by case
Large areas of the array not firing	Widespread element or acoustic stack failure	Usually not economical

Check these before you ship the probe

• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.

Repair, exchange or replace — which applies to your PLF-805ST

Whether a PLF-805ST is worth repairing depends on the damage scope: localized lens, cable, strain relief and connector faults are routine repairs, while widespread element loss usually is not economical. An exchange unit can bridge the gap when downtime matters, and replacement becomes rational when repair cost approaches replacement value. A written assessment settles this per probe – condition, not model, decides it.

What we need to quote your PLF-805ST repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

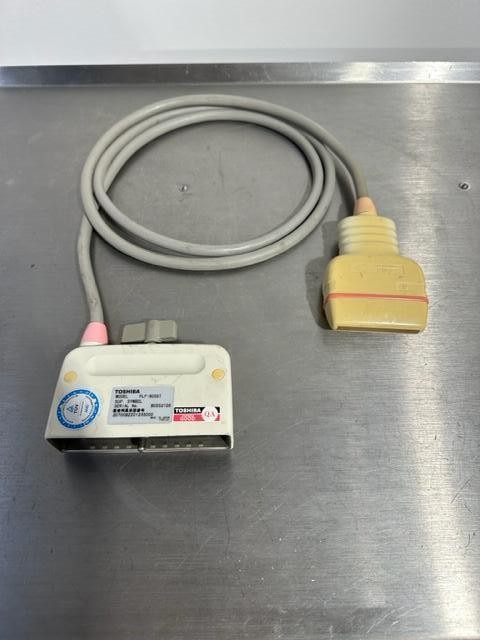

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific PLF-805ST can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
