Toshiba PLM-503AT Ultrasound Probe Repair

If your Toshiba PLM-503AT is producing degraded images, failing probe tests or showing physical damage, this page helps you judge what is likely wrong and whether a repair makes sense before you commit to a replacement.

Manufacturer	Toshiba
Model	PLM-503AT
Probe type	Linear array
Compatible systems	Toshiba Nemio XG (SSA-580A)

You will usually see the PLM-503AT running on Toshiba Nemio XG (SSA-580A). Mention the console model with the fault description – connector and revision differences matter.

Linear arrays like the PLM-503AT concentrate wear at the lens edges and the cable exit – shallow, high-frequency work means constant handling, and the first faults are usually mechanical rather than acoustic.

Common failure modes for the PLM-503AT

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Vertical shadowing or missing scan lines on screen	Element dropout, or a conductor break inside the cable	Case by case
Split seams or impact marks on the probe body	Impact damage; housing can usually be replaced or resealed	Usually repairable
Strain relief pulling away from the cable or gone rigid	Cable flex fatigue at the probe or connector end	Usually repairable
Image cuts out when the cable is flexed	One or more conductors broken inside the cable bundle	Case by case
Fuzzy or noisy image that cleaning does not fix	Lens wear or early element degradation	Case by case
Bubbles or lifting at the lens face	The lens separating from the acoustic stack underneath	Usually repairable
Whole regions of the image blank across the array width	Widespread element or acoustic stack failure	Usually not economical

Check these before you ship the probe

• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Run the system’s built-in probe test or element check if your console provides one.

Repair, exchange or replace — which applies to your PLM-503AT

Whether a PLM-503AT is worth repairing depends on the damage scope: localized lens, cable, strain relief and connector faults are routine repairs, while widespread element loss usually is not economical. An exchange unit can bridge the gap when downtime matters, and replacement becomes rational when repair cost approaches replacement value. A written assessment settles this per probe – condition, not model, decides it.

What we need to quote your PLM-503AT repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

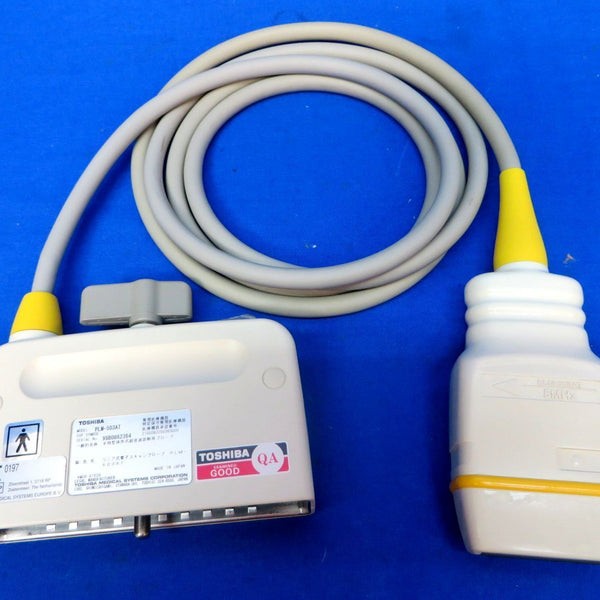

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific PLM-503AT can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
