Toshiba PSF-50ET Ultrasound Probe Repair

Before writing off a damaged Toshiba PSF-50ET, compare its symptoms against the failure modes below. Many lens, cable and connector faults on this probe class are economically repairable.

Manufacturer	Toshiba
Model	PSF-50ET
Probe type	Phased Array
Compatible systems	Toshiba PowerPace (SSH-140A), Toshiba Sonolayer (SSA-270A), Toshiba Sonolayer (SSH-160A)

You will usually see the PSF-50ET running on Toshiba PowerPace (SSH-140A), Toshiba Sonolayer (SSA-270A), Toshiba Sonolayer (SSH-160A). Mention the console model with the fault description – connector and revision differences matter.

Phased arrays like the PSF-50ET pack tightly spaced elements into a small footprint – edge-element failures distort the sector image early, and cardiac duty cycles accelerate cable fatigue.

Common failure modes for the PSF-50ET

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Strain relief pulling away from the cable or gone rigid	Flex fatigue where the cable meets the probe or connector	Usually repairable
Air pockets or peeling visible on the acoustic lens	The lens separating from the acoustic stack underneath	Usually repairable
Connector lock broken or hardware missing	Broken locking mechanics on the connector housing	Usually repairable
Pin damage or corrosion visible in the connector	Mechanical damage from forcing or dropping the connector	Usually repairable
Grainy, low-detail image even after presets are checked	Lens wear or early element degradation	Case by case
Depth performance clearly below what this probe used to deliver	Reduced acoustic output from element ageing or a delaminating lens	Case by case
Cracked or dented housing	A drop or knock; housings are routinely replaced or resealed	Usually repairable
Sector image narrows or loses the apex	Element failure concentrated at the array edge	Case by case

Check these before you ship the probe

• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Run the system’s built-in probe test or element check if your console provides one.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Compare penetration and uniformity against a known-good probe on the same preset.

Repair, exchange or replace — which applies to your PSF-50ET

Whether a PSF-50ET is worth repairing depends on the damage scope: localized lens, cable, strain relief and connector faults are routine repairs, while widespread element loss usually is not economical. An exchange unit can bridge the gap when downtime matters, and replacement becomes rational when repair cost approaches replacement value. A written assessment settles this per probe – condition, not model, decides it.

What we need to quote your PSF-50ET repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

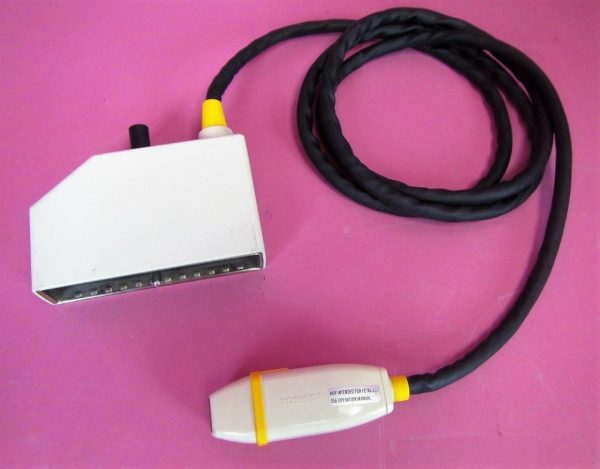

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific PSF-50ET can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
