Toshiba PVF-620ST Ultrasound Probe Repair

Before writing off a damaged Toshiba PVF-620ST, compare its symptoms against the failure modes below. Many lens, cable and connector faults on this probe class are economically repairable.

Manufacturer	Toshiba
Model	PVF-620ST
Probe type	Endocavity array
Compatible systems	Toshiba CoreVision (SSA-350A), Toshiba Eccocee (SSA-340A), Toshiba Nemio 17 (SSA-550A-17), Toshiba PowerVision 6000 (SSA-370A), Toshiba Tosbee (SSA-240A)

The PVF-620ST typically pairs with Toshiba CoreVision (SSA-350A), Toshiba Eccocee (SSA-340A), Toshiba Nemio 17 (SSA-550A-17), Toshiba PowerVision 6000 (SSA-370A), Toshiba Tosbee (SSA-240A); the same fault can present differently between console revisions, which is why the host system is asked for with the quote details.

Endocavity probes like the PVF-620ST live through high-level disinfection cycles that attack seals and the lens; fluid ingress is the fault that ends most of them, which is why leak testing matters.

Common failure modes for the PVF-620ST

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Cable jacket cracked, wrinkled or discolored	Jacket wear; conductors may still be intact underneath	Usually repairable
Bubbles or lifting at the lens face	Lens delamination from the acoustic stack	Usually repairable
Cracked or dented housing	Impact damage; housing can usually be replaced or resealed	Usually repairable
Cuts, gouges or discoloration on the lens membrane	Mechanical wear or disinfectant damage to the lens	Usually repairable
Bent, broken or corroded connector pins	Mechanical damage from forcing or dropping the connector	Usually repairable
Noticeably weaker penetration than the paired probe	Ageing elements or lens delamination reducing acoustic output	Case by case
Large areas of the array not firing	Widespread element or acoustic stack failure	Usually not economical
Fluid found inside the probe head after a leak test	Seal failure allowing disinfectant ingress	Case by case
Failed electrical leakage test	Compromised sealing on an endocavity probe	Case by case

Check these before you ship the probe

• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Run the system’s built-in probe test or element check if your console provides one.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Have the probe leak-tested before further use – fluid ingress worsens quickly and creates a patient-safety issue.

Repair, exchange or replace — which applies to your PVF-620ST

Whether a PVF-620ST is worth repairing depends on the damage scope: localized lens, cable, strain relief and connector faults are routine repairs, while widespread element loss usually is not economical. An exchange unit can bridge the gap when downtime matters, and replacement becomes rational when repair cost approaches replacement value. A written assessment settles this per probe – condition, not model, decides it.

What we need to quote your PVF-620ST repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

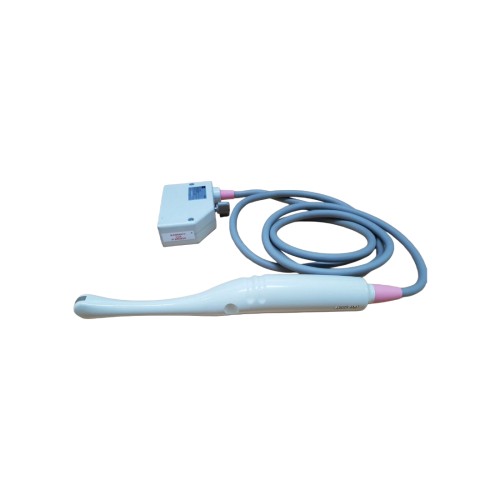

Product imagery on this page is representative of the PVF-620ST probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
