Toshiba PVT-375BT Ultrasound Probe Repair

This page covers the Toshiba PVT-375BT from a repair perspective: the failure modes we see on this class of probe, how to check the probe yourself, and what information gets you an accurate repair quote.

Manufacturer	Toshiba
Model	PVT-375BT
Probe type	Convex array
Typical applications	Abdominal, OB/GYN
Compatible systems	Aplio XG

You will usually see the PVT-375BT running on Aplio XG. Mention the console model with the fault description – connector and revision differences matter.

On convex probes such as the PVT-375BT, the curved acoustic window wears unevenly under pressure-heavy scanning; lens condition is the first thing to check when image quality drops.

Common failure modes for the PVT-375BT

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Grainy, low-detail image even after presets are checked	Lens wear or early element degradation	Case by case
Bent, broken or corroded connector pins	Connector damage from forced insertion or drops	Usually repairable
Whole regions of the image blank across the array width	Widespread element or acoustic stack failure	Usually not economical
Noticeably weaker penetration than the paired probe	Reduced acoustic output from element ageing or a delaminating lens	Case by case
Split seams or impact marks on the probe body	A drop or knock; housings are routinely replaced or resealed	Usually repairable
Cuts, gouges or discoloration on the lens membrane	Wear from use, or chemical attack from disinfectants	Usually repairable
Outer cable sheath showing cracks, kinks or staining	Jacket wear; conductors may still be intact underneath	Usually repairable

Check these before you ship the probe

• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Run the system’s built-in probe test or element check if your console provides one.

Repair, exchange or replace — which applies to your PVT-375BT

Three paths apply to a failing PVT-375BT: repair (typical for lens, housing, cable and connector damage), exchange (fastest route back to scanning) or replacement (when the acoustic stack is too far gone). The deciding factors are how much of the array still fires, whether the housing is intact and what downtime costs you. Each probe is judged on its actual condition.

What we need to quote your PVT-375BT repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

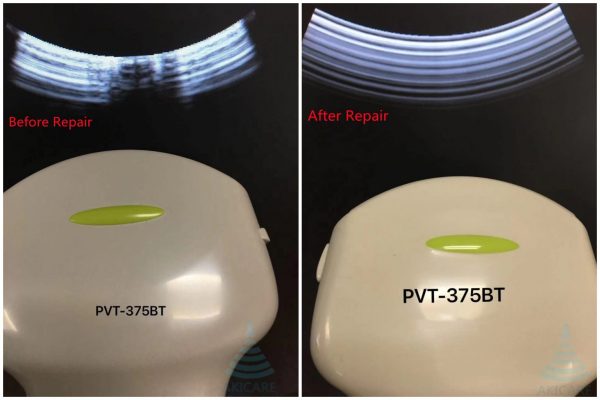

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific PVT-375BT can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
