Toshiba PVT-661VT Ultrasound Probe Repair

If your Toshiba PVT-661VT is producing degraded images, failing probe tests or showing physical damage, this page helps you judge what is likely wrong and whether a repair makes sense before you commit to a replacement.

Manufacturer	Toshiba
Model	PVT-661VT
Probe type	Endocavity array
Compatible systems	Toshiba Aplio 50 (SSA-700A), Toshiba Aplio 500 (TUS-A500), Toshiba Viamo (SSA-640A), Toshiba Xario (SSA-660A)

The PVT-661VT typically pairs with Toshiba Aplio 50 (SSA-700A), Toshiba Aplio 500 (TUS-A500), Toshiba Viamo (SSA-640A), Toshiba Xario (SSA-660A); the same fault can present differently between console revisions, which is why the host system is asked for with the quote details.

Endocavity probes like the PVT-661VT live through high-level disinfection cycles that attack seals and the lens; fluid ingress is the fault that ends most of them, which is why leak testing matters.

Common failure modes for the PVT-661VT

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Whole regions of the image blank across the array width	Extensive element loss across the acoustic stack	Usually not economical
Outer cable sheath showing cracks, kinks or staining	Surface jacket wear – the conductors inside are often still good	Usually repairable
Air pockets or peeling visible on the acoustic lens	The lens separating from the acoustic stack underneath	Usually repairable
Visible nicks, grooves or staining on the lens surface	Wear from use, or chemical attack from disinfectants	Usually repairable
Fuzzy or noisy image that cleaning does not fix	Lens wear or early element degradation	Case by case
Split seams or impact marks on the probe body	Impact damage; housing can usually be replaced or resealed	Usually repairable
Image cuts out when the cable is flexed	One or more conductors broken inside the cable bundle	Case by case
Fluid found inside the probe head after a leak test	Seal failure allowing disinfectant ingress	Case by case
Failed electrical leakage test	Compromised sealing on an endocavity probe	Case by case

Check these before you ship the probe

• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Run the system’s built-in probe test or element check if your console provides one.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Have the probe leak-tested before further use – fluid ingress worsens quickly and creates a patient-safety issue.

Repair, exchange or replace — which applies to your PVT-661VT

Repair suits the PVT-661VT when damage is mechanical or confined – lens membrane, strain relief, cable jacket, connector hardware. Once element dropout spreads across large sections of the array, repair cost climbs toward replacement value and stops making sense. If uptime is critical, ask about exchange options while your probe is assessed.

What we need to quote your PVT-661VT repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

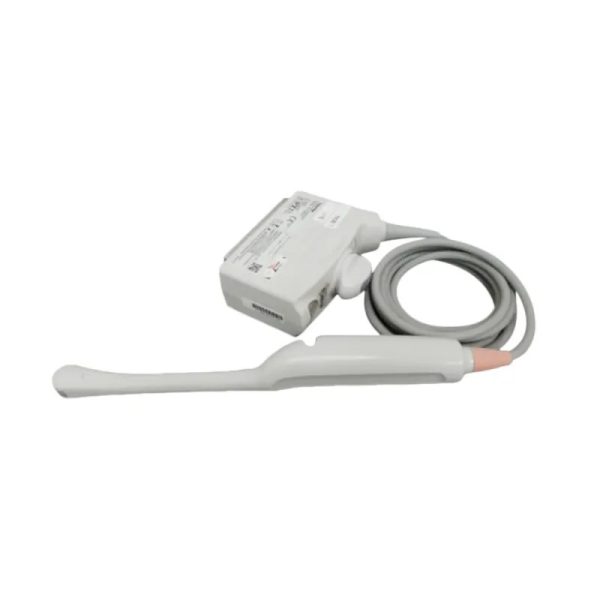

Product imagery on this page is representative of the PVT-661VT probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
