Toshiba PVT-712BT Ultrasound Probe Repair

Before writing off a damaged Toshiba PVT-712BT, compare its symptoms against the failure modes below. Many lens, cable and connector faults on this probe class are economically repairable.

Manufacturer	Toshiba
Model	PVT-712BT
Probe type	Micro-Convex array
Typical applications	Small Parts, Vascular
Compatible systems	Aplio 300

You will usually see the PVT-712BT running on Aplio 300. Mention the console model with the fault description – connector and revision differences matter.

Micro-convex heads like the PVT-712BT serve pediatric and tight-window work; the small lens face wears fast under pressure and the fine cable bundles are vulnerable at the strain relief.

Common failure modes for the PVT-712BT

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Connector lock broken or hardware missing	Broken locking mechanics on the connector housing	Usually repairable
Noticeably weaker penetration than the paired probe	Reduced acoustic output from element ageing or a delaminating lens	Case by case
Cracked or dented housing	A drop or knock; housings are routinely replaced or resealed	Usually repairable
Air pockets or peeling visible on the acoustic lens	Lens delamination from the acoustic stack	Usually repairable
Outer cable sheath showing cracks, kinks or staining	Surface jacket wear – the conductors inside are often still good	Usually repairable
Bent, broken or corroded connector pins	Connector damage from forced insertion or drops	Usually repairable
Strain relief separated, split or stiff	Cable flex fatigue at the probe or connector end	Usually repairable

Check these before you ship the probe

• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Run the system’s built-in probe test or element check if your console provides one.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.

Repair, exchange or replace — which applies to your PVT-712BT

Whether a PVT-712BT is worth repairing depends on the damage scope: localized lens, cable, strain relief and connector faults are routine repairs, while widespread element loss usually is not economical. An exchange unit can bridge the gap when downtime matters, and replacement becomes rational when repair cost approaches replacement value. A written assessment settles this per probe – condition, not model, decides it.

What we need to quote your PVT-712BT repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

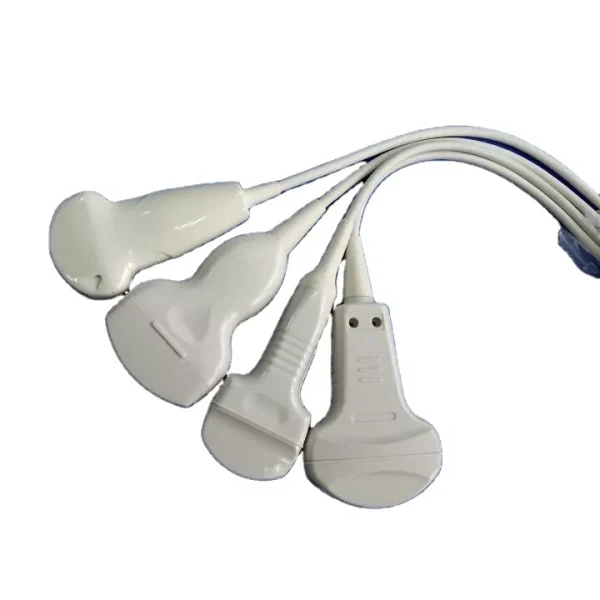

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific PVT-712BT can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
