Toshiba PVT-770RT Ultrasound Probe Repair

This page covers the Toshiba PVT-770RT from a repair perspective: the failure modes we see on this class of probe, how to check the probe yourself, and what information gets you an accurate repair quote.

Manufacturer	Toshiba
Model	PVT-770RT
Probe type	Endocavity array
Compatible systems	Toshiba Aplio 50 (SSA-700A), Toshiba Aplio 80 (SSA-770A), Toshiba Aplio XG (SSA-790A), Toshiba Xario (SSA-660A), Toshiba Xario XG (SSA-680A)

In service the PVT-770RT is most often found on Toshiba Aplio 50 (SSA-700A), Toshiba Aplio 80 (SSA-770A), Toshiba Aplio XG (SSA-790A), Toshiba Xario (SSA-660A), Toshiba Xario XG (SSA-680A). Console-side settings and module revisions still vary, so the exact system build is part of any assessment.

For endocavity heads such as the PVT-770RT, reprocessing chemistry is the main enemy – seal integrity and lens condition decide service life more than the electronics do.

Common failure modes for the PVT-770RT

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Noticeably weaker penetration than the paired probe	Ageing elements or lens delamination reducing acoustic output	Case by case
Bubbles or lifting at the lens face	The lens separating from the acoustic stack underneath	Usually repairable
Visible nicks, grooves or staining on the lens surface	Mechanical wear or disinfectant damage to the lens	Usually repairable
Whole regions of the image blank across the array width	Widespread element or acoustic stack failure	Usually not economical
Strain relief separated, split or stiff	Flex fatigue where the cable meets the probe or connector	Usually repairable
Pin damage or corrosion visible in the connector	Connector damage from forced insertion or drops	Usually repairable
Outer cable sheath showing cracks, kinks or staining	Surface jacket wear – the conductors inside are often still good	Usually repairable
Fluid found inside the probe head after a leak test	Seal failure allowing disinfectant ingress	Case by case
Failed electrical leakage test	Compromised sealing on an endocavity probe	Case by case

Check these before you ship the probe

• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Run the system’s built-in probe test or element check if your console provides one.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Have the probe leak-tested before further use – fluid ingress worsens quickly and creates a patient-safety issue.

Repair, exchange or replace — which applies to your PVT-770RT

For the PVT-770RT, think in terms of damage depth: surface and cable-level faults are usually repairable at a fraction of replacement cost; acoustic stack failures are evaluated case by case; extensive element loss generally means replacement. Send the symptoms and photos first – that determines the path before anything ships.

What we need to quote your PVT-770RT repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

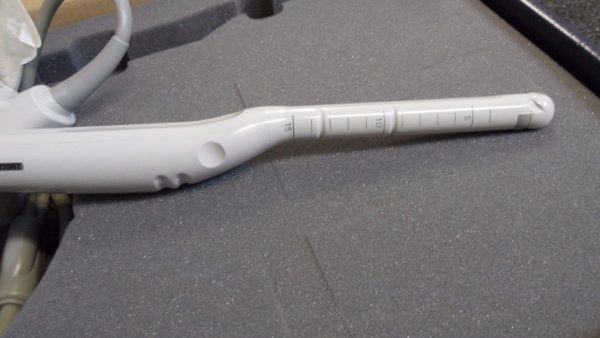

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific PVT-770RT can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
