Toshiba PVT-781VT Ultrasound Probe Repair

If your Toshiba PVT-781VT is producing degraded images, failing probe tests or showing physical damage, this page helps you judge what is likely wrong and whether a repair makes sense before you commit to a replacement.

Manufacturer	Toshiba
Model	PVT-781VT
Probe type	Endocavity array
Typical applications	OB/GYN, Urology
Compatible systems	Aplio MX

In service the PVT-781VT is most often found on Aplio MX. Console-side settings and module revisions still vary, so the exact system build is part of any assessment.

Endocavity probes like the PVT-781VT live through high-level disinfection cycles that attack seals and the lens; fluid ingress is the fault that ends most of them, which is why leak testing matters.

Common failure modes for the PVT-781VT

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Cracked or dented housing	A drop or knock; housings are routinely replaced or resealed	Usually repairable
Air pockets or peeling visible on the acoustic lens	The lens separating from the acoustic stack underneath	Usually repairable
Fuzzy or noisy image that cleaning does not fix	Lens wear or early element degradation	Case by case
Depth performance clearly below what this probe used to deliver	Ageing elements or lens delamination reducing acoustic output	Case by case
Visible nicks, grooves or staining on the lens surface	Wear from use, or chemical attack from disinfectants	Usually repairable
Whole regions of the image blank across the array width	Widespread element or acoustic stack failure	Usually not economical
Connector lock broken or hardware missing	Broken locking mechanics on the connector housing	Usually repairable
Fluid found inside the probe head after a leak test	Seal failure allowing disinfectant ingress	Case by case
Failed electrical leakage test	Compromised sealing on an endocavity probe	Case by case

Check these before you ship the probe

• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Run the system’s built-in probe test or element check if your console provides one.
• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Have the probe leak-tested before further use – fluid ingress worsens quickly and creates a patient-safety issue.

Repair, exchange or replace — which applies to your PVT-781VT

Whether a PVT-781VT is worth repairing depends on the damage scope: localized lens, cable, strain relief and connector faults are routine repairs, while widespread element loss usually is not economical. An exchange unit can bridge the gap when downtime matters, and replacement becomes rational when repair cost approaches replacement value. A written assessment settles this per probe – condition, not model, decides it.

What we need to quote your PVT-781VT repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

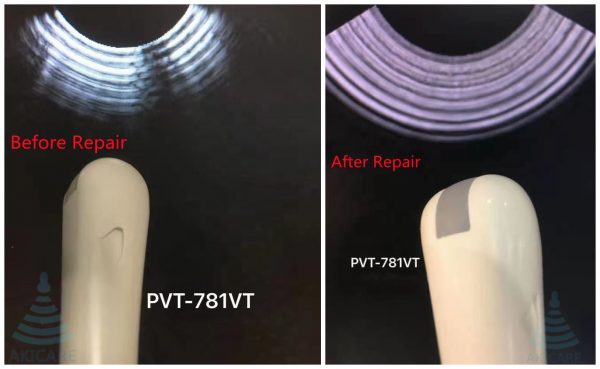

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific PVT-781VT can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
