ATL C5-IVT Ultrasound Probe Repair

If your ATL C5-IVT is producing degraded images, failing probe tests or showing physical damage, this page helps you judge what is likely wrong and whether a repair makes sense before you commit to a replacement.

Manufacturer	ATL
Model	C5-IVT
Probe type	Endocavity array
Compatible systems	ATL HDI-1500, ATL HDI-3000, ATL HDI-3500, ATL HDI-5000, ATL Ultramark 9 (UM9)

In service the C5-IVT is most often found on ATL HDI-1500, ATL HDI-3000, ATL HDI-3500, ATL HDI-5000, ATL Ultramark 9 (UM9). Console-side settings and module revisions still vary, so the exact system build is part of any assessment.

Endocavity probes like the C5-IVT live through high-level disinfection cycles that attack seals and the lens; fluid ingress is the fault that ends most of them, which is why leak testing matters.

Common failure modes for the C5-IVT

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Bubbles or lifting at the lens face	Lens delamination from the acoustic stack	Usually repairable
Outer cable sheath showing cracks, kinks or staining	Jacket wear; conductors may still be intact underneath	Usually repairable
Noticeably weaker penetration than the paired probe	Reduced acoustic output from element ageing or a delaminating lens	Case by case
Grainy, low-detail image even after presets are checked	A worn lens surface or elements beginning to degrade	Case by case
Pin damage or corrosion visible in the connector	Connector damage from forced insertion or drops	Usually repairable
Large areas of the array not firing	Extensive element loss across the acoustic stack	Usually not economical
Strain relief separated, split or stiff	Cable flex fatigue at the probe or connector end	Usually repairable
Fluid found inside the probe head after a leak test	Seal failure allowing disinfectant ingress	Case by case
Failed electrical leakage test	Compromised sealing on an endocavity probe	Case by case

Check these before you ship the probe

• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Have the probe leak-tested before further use – fluid ingress worsens quickly and creates a patient-safety issue.

Repair, exchange or replace — which applies to your C5-IVT

For the C5-IVT, think in terms of damage depth: surface and cable-level faults are usually repairable at a fraction of replacement cost; acoustic stack failures are evaluated case by case; extensive element loss generally means replacement. Send the symptoms and photos first – that determines the path before anything ships.

What we need to quote your C5-IVT repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

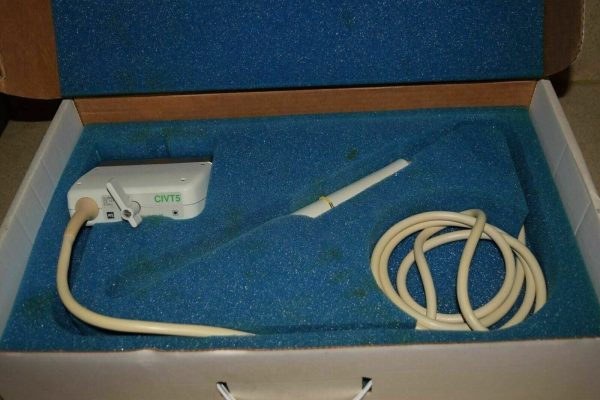

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific C5-IVT can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
