BK Medical 8658 Ultrasound Probe Repair

A failing BK Medical 8658 does not always mean buying a new probe. Use the fault table below to match what you are seeing on screen to a likely cause, then check what a repair assessment would need.

Manufacturer	BK Medical
Model	8658
Probe type	Endocavity array
Compatible systems	BK Medical Falcon 2101

The 8658 typically pairs with BK Medical Falcon 2101; the same fault can present differently between console revisions, which is why the host system is asked for with the quote details.

Endocavity probes like the 8658 live through high-level disinfection cycles that attack seals and the lens; fluid ingress is the fault that ends most of them, which is why leak testing matters.

Common failure modes for the 8658

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Connector lock broken or hardware missing	Broken locking mechanics on the connector housing	Usually repairable
Fuzzy or noisy image that cleaning does not fix	Lens wear or early element degradation	Case by case
Bent, broken or corroded connector pins	Connector damage from forced insertion or drops	Usually repairable
Intermittent signal that changes as the cable moves	Broken internal conductors in the cable	Case by case
Dark bands or dropout lines in the image	Element dropout, or a conductor break inside the cable	Case by case
Cable jacket cracked, wrinkled or discolored	Jacket wear; conductors may still be intact underneath	Usually repairable
Whole regions of the image blank across the array width	Widespread element or acoustic stack failure	Usually not economical
Fluid found inside the probe head after a leak test	Seal failure allowing disinfectant ingress	Case by case
Failed electrical leakage test	Compromised sealing on an endocavity probe	Case by case

Check these before you ship the probe

• Run the system’s built-in probe test or element check if your console provides one.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Have the probe leak-tested before further use – fluid ingress worsens quickly and creates a patient-safety issue.

Repair, exchange or replace — which applies to your 8658

Whether a 8658 is worth repairing depends on the damage scope: localized lens, cable, strain relief and connector faults are routine repairs, while widespread element loss usually is not economical. An exchange unit can bridge the gap when downtime matters, and replacement becomes rational when repair cost approaches replacement value. A written assessment settles this per probe – condition, not model, decides it.

What we need to quote your 8658 repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

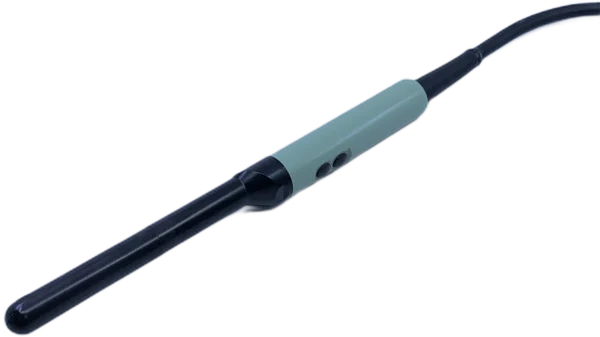

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific 8658 can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
