BK Medical 8808e Ultrasound Probe Repair

This page covers the BK Medical 8808e from a repair perspective: the failure modes we see on this class of probe, how to check the probe yourself, and what information gets you an accurate repair quote.

Manufacturer	BK Medical
Model	8808e
Probe type	Endocavity array
Compatible systems	BK Medical Flex Focus 500

In service the 8808e is most often found on BK Medical Flex Focus 500. Console-side settings and module revisions still vary, so the exact system build is part of any assessment.

For endocavity heads such as the 8808e, reprocessing chemistry is the main enemy – seal integrity and lens condition decide service life more than the electronics do.

Common failure modes for the 8808e

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Intermittent signal that changes as the cable moves	One or more conductors broken inside the cable bundle	Case by case
Bent, broken or corroded connector pins	Mechanical damage from forcing or dropping the connector	Usually repairable
Dark bands or dropout lines in the image	Element dropout, or a conductor break inside the cable	Case by case
Connector lock broken or hardware missing	Mechanical damage to the connector shell	Usually repairable
Cuts, gouges or discoloration on the lens membrane	Wear from use, or chemical attack from disinfectants	Usually repairable
Cable jacket cracked, wrinkled or discolored	Jacket wear; conductors may still be intact underneath	Usually repairable
Grainy, low-detail image even after presets are checked	Lens wear or early element degradation	Case by case
Fluid found inside the probe head after a leak test	Seal failure allowing disinfectant ingress	Case by case
Failed electrical leakage test	Compromised sealing on an endocavity probe	Case by case

Check these before you ship the probe

• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Run the system’s built-in probe test or element check if your console provides one.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Have the probe leak-tested before further use – fluid ingress worsens quickly and creates a patient-safety issue.

Repair, exchange or replace — which applies to your 8808e

Whether a 8808e is worth repairing depends on the damage scope: localized lens, cable, strain relief and connector faults are routine repairs, while widespread element loss usually is not economical. An exchange unit can bridge the gap when downtime matters, and replacement becomes rational when repair cost approaches replacement value. A written assessment settles this per probe – condition, not model, decides it.

What we need to quote your 8808e repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

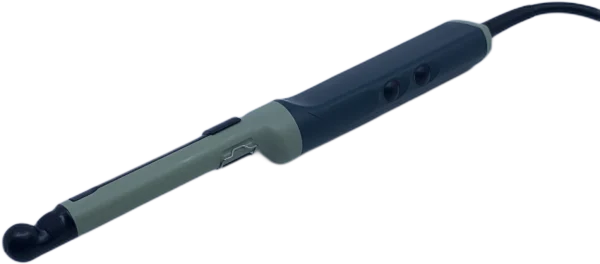

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific 8808e can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
