BK Medical 8823 Ultrasound Probe Repair

The BK Medical 8823 is a common candidate for repair rather than replacement. This page lists its typical failure modes, self-checks you can run, and the details a repair lab needs from you.

Manufacturer	BK Medical
Model	8823
Probe type	Convex array
Compatible systems	BK Medical Flex Focus 400, BK Medical Flex Focus 500, BK Medical Flex Focus 700, BK Medical Flex Focus 800

The 8823 typically pairs with BK Medical Flex Focus 400, BK Medical Flex Focus 500, BK Medical Flex Focus 700, BK Medical Flex Focus 800; the same fault can present differently between console revisions, which is why the host system is asked for with the quote details.

Curved arrays like the 8823 see heavy abdominal duty, and the curved lens face takes the brunt of it – delamination and membrane wear typically show up before element failures do.

Common failure modes for the 8823

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Dark bands or dropout lines in the image	Failed transducer elements or a broken conductor in the cable	Case by case
Outer cable sheath showing cracks, kinks or staining	Jacket wear; conductors may still be intact underneath	Usually repairable
Strain relief separated, split or stiff	Flex fatigue where the cable meets the probe or connector	Usually repairable
Connector lock broken or hardware missing	Mechanical damage to the connector shell	Usually repairable
Grainy, low-detail image even after presets are checked	Lens wear or early element degradation	Case by case
Bent, broken or corroded connector pins	Mechanical damage from forcing or dropping the connector	Usually repairable
Depth performance clearly below what this probe used to deliver	Ageing elements or lens delamination reducing acoustic output	Case by case

Check these before you ship the probe

• Flex the cable gently along its length while imaging – intermittent dropout points to broken conductors.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Run the system’s built-in probe test or element check if your console provides one.
• Compare penetration and uniformity against a known-good probe on the same preset.

Repair, exchange or replace — which applies to your 8823

Whether a 8823 is worth repairing depends on the damage scope: localized lens, cable, strain relief and connector faults are routine repairs, while widespread element loss usually is not economical. An exchange unit can bridge the gap when downtime matters, and replacement becomes rational when repair cost approaches replacement value. A written assessment settles this per probe – condition, not model, decides it.

What we need to quote your 8823 repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

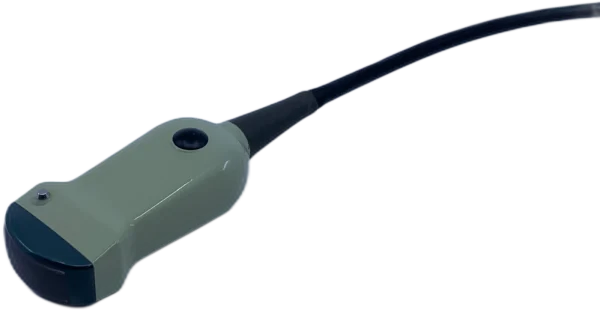

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific 8823 can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
