Chison V6 Ultrasound Probe Repair

If your Chison V6 is producing degraded images, failing probe tests or showing physical damage, this page helps you judge what is likely wrong and whether a repair makes sense before you commit to a replacement.

Manufacturer	Chison
Model	V6
Probe type	Endocavity array
Frequency reference	4–8 MHz
Typical applications	OB/GYN, Urology
Compatible systems	Chison SonoTouch 30
Source record	AME product record

You will usually see the V6 running on Chison SonoTouch 30. Mention the console model with the fault description – connector and revision differences matter.

For endocavity heads such as the V6, reprocessing chemistry is the main enemy – seal integrity and lens condition decide service life more than the electronics do.

Common failure modes for the V6

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Visible nicks, grooves or staining on the lens surface	Wear from use, or chemical attack from disinfectants	Usually repairable
Intermittent signal that changes as the cable moves	Broken internal conductors in the cable	Case by case
Bubbles or lifting at the lens face	Lens delamination from the acoustic stack	Usually repairable
Bent, broken or corroded connector pins	Mechanical damage from forcing or dropping the connector	Usually repairable
Split seams or impact marks on the probe body	A drop or knock; housings are routinely replaced or resealed	Usually repairable
Noticeably weaker penetration than the paired probe	Reduced acoustic output from element ageing or a delaminating lens	Case by case
Connector lock broken or hardware missing	Broken locking mechanics on the connector housing	Usually repairable
Fluid found inside the probe head after a leak test	Seal failure allowing disinfectant ingress	Case by case
Failed electrical leakage test	Compromised sealing on an endocavity probe	Case by case

Check these before you ship the probe

• Run the system’s built-in probe test or element check if your console provides one.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Inspect the lens face under good light for cuts, bubbles, lifting edges or discoloration.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Have the probe leak-tested before further use – fluid ingress worsens quickly and creates a patient-safety issue.

Repair, exchange or replace — which applies to your V6

For the V6, think in terms of damage depth: surface and cable-level faults are usually repairable at a fraction of replacement cost; acoustic stack failures are evaluated case by case; extensive element loss generally means replacement. Send the symptoms and photos first – that determines the path before anything ships.

What we need to quote your V6 repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

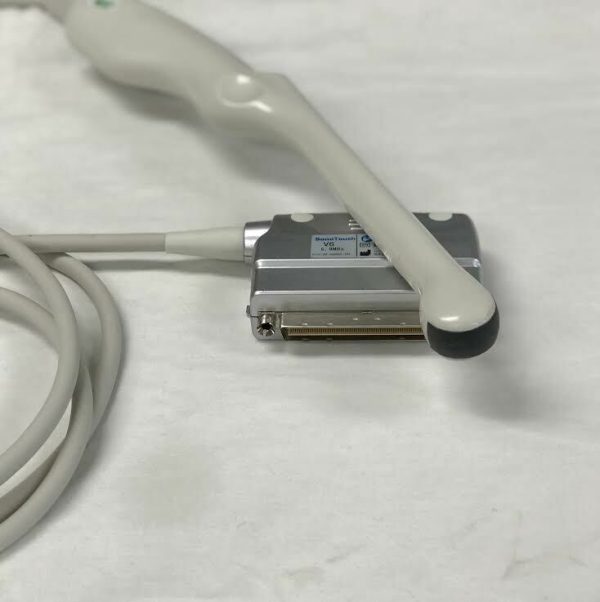

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific V6 can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
