GE 7.5LA Ultrasound Probe Repair

This page covers the GE 7.5LA from a repair perspective: the failure modes we see on this class of probe, how to check the probe yourself, and what information gets you an accurate repair quote.

Manufacturer	GE
Model	7.5LA
Probe type	Linear array
Compatible systems	GE Logiq P3

In service the 7.5LA is most often found on GE Logiq P3. Console-side settings and module revisions still vary, so the exact system build is part of any assessment.

Linear arrays like the 7.5LA concentrate wear at the lens edges and the cable exit – shallow, high-frequency work means constant handling, and the first faults are usually mechanical rather than acoustic.

Common failure modes for the 7.5LA

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Connector lock broken or hardware missing	Broken locking mechanics on the connector housing	Usually repairable
Noticeably weaker penetration than the paired probe	Reduced acoustic output from element ageing or a delaminating lens	Case by case
Strain relief pulling away from the cable or gone rigid	Cable flex fatigue at the probe or connector end	Usually repairable
Grainy, low-detail image even after presets are checked	Lens wear or early element degradation	Case by case
Whole regions of the image blank across the array width	Extensive element loss across the acoustic stack	Usually not economical
Dark bands or dropout lines in the image	Failed transducer elements or a broken conductor in the cable	Case by case
Air pockets or peeling visible on the acoustic lens	Lens delamination from the acoustic stack	Usually repairable

Check these before you ship the probe

• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Run the system’s built-in probe test or element check if your console provides one.
• Compare penetration and uniformity against a known-good probe on the same preset.

Repair, exchange or replace — which applies to your 7.5LA

For the 7.5LA, think in terms of damage depth: surface and cable-level faults are usually repairable at a fraction of replacement cost; acoustic stack failures are evaluated case by case; extensive element loss generally means replacement. Send the symptoms and photos first – that determines the path before anything ships.

What we need to quote your 7.5LA repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

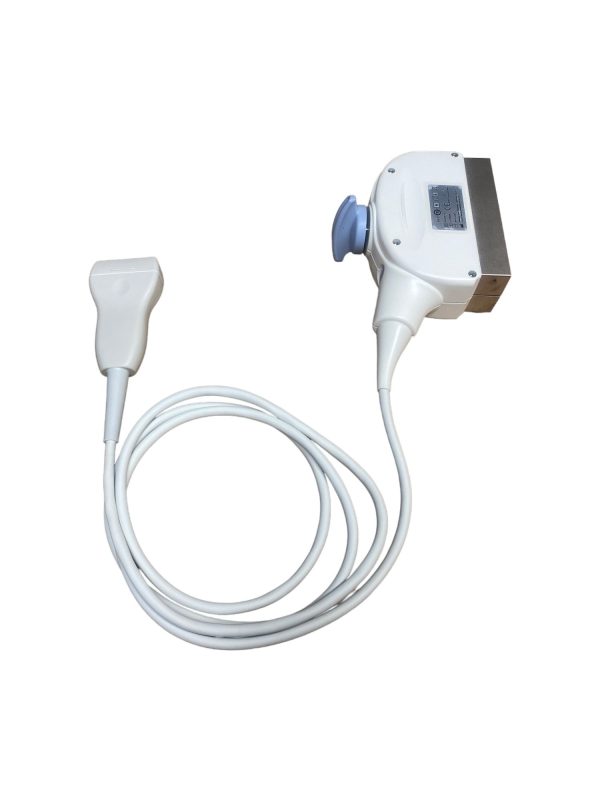

Product imagery on this page is representative of the 7.5LA probe family and is not a photograph of your specific unit. This page does not claim OEM authorization or universal compatibility. Repair feasibility, turnaround and commercial terms are confirmed in writing after assessment of the actual probe.
