GE BE9CS-D Ultrasound Probe Repair

Use this reference to troubleshoot the GE BE9CS-D: identify the fault from what you see, judge whether it is typically repairable, and prepare the details needed for a quote.

Manufacturer	GE
Model	BE9CS-D
Probe type	Endocavity array
Compatible systems	GE Logiq Fortis, GE Logiq S8

The BE9CS-D typically pairs with GE Logiq Fortis, GE Logiq S8; the same fault can present differently between console revisions, which is why the host system is asked for with the quote details.

Endocavity probes like the BE9CS-D live through high-level disinfection cycles that attack seals and the lens; fluid ingress is the fault that ends most of them, which is why leak testing matters.

Common failure modes for the BE9CS-D

Match what you are seeing against the table below. The right-hand column reflects how faults of this kind typically assess – the actual verdict always depends on the individual probe.

What you see	Likely cause	Typically repairable?
Bent, broken or corroded connector pins	Mechanical damage from forcing or dropping the connector	Usually repairable
Cuts, gouges or discoloration on the lens membrane	Mechanical wear or disinfectant damage to the lens	Usually repairable
Image cuts out when the cable is flexed	One or more conductors broken inside the cable bundle	Case by case
Strain relief separated, split or stiff	Flex fatigue where the cable meets the probe or connector	Usually repairable
Bubbles or lifting at the lens face	The lens separating from the acoustic stack underneath	Usually repairable
Outer cable sheath showing cracks, kinks or staining	Jacket wear; conductors may still be intact underneath	Usually repairable
Latch or locking hardware damaged on the connector shell	Mechanical damage to the connector shell	Usually repairable
Fluid found inside the probe head after a leak test	Seal failure allowing disinfectant ingress	Case by case
Failed electrical leakage test	Compromised sealing on an endocavity probe	Case by case

Check these before you ship the probe

• Examine the connector for bent or corroded pins, cracks and a working locking mechanism.
• Compare penetration and uniformity against a known-good probe on the same preset.
• Photograph the complete manufacturer label – the exact revision matters for parts compatibility.
• Check the strain reliefs at both ends for splits, stiffness or separation from the cable.
• Run the system’s built-in probe test or element check if your console provides one.
• Have the probe leak-tested before further use – fluid ingress worsens quickly and creates a patient-safety issue.

Repair, exchange or replace — which applies to your BE9CS-D

For the BE9CS-D, think in terms of damage depth: surface and cable-level faults are usually repairable at a fraction of replacement cost; acoustic stack failures are evaluated case by case; extensive element loss generally means replacement. Send the symptoms and photos first – that determines the path before anything ships.

What we need to quote your BE9CS-D repair

• A clear photo of the complete manufacturer and model label on the probe
• A description of the fault: what you see on screen and when it started
• The ultrasound system (console) the probe is used with
• Screenshots or photos of the image problem, if the fault is visual
• Photos of any physical damage – lens, housing, cable or connector

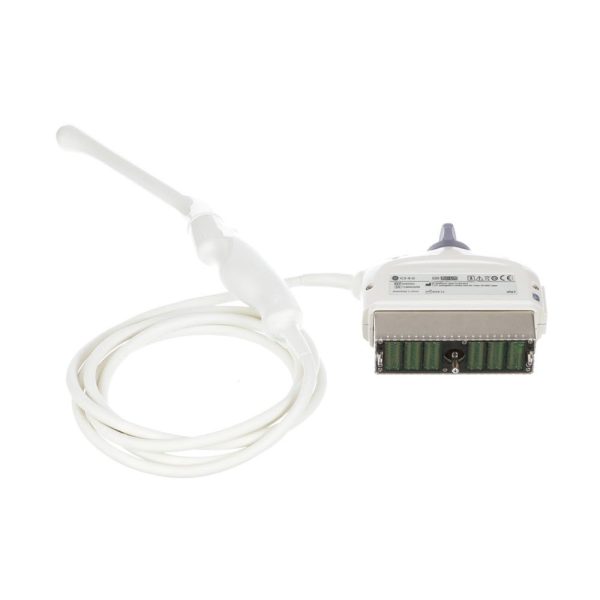

Images shown are representative and are not photographs of an individual unit. Nothing on this page claims OEM authorization or guarantees universal fit. Whether a specific BE9CS-D can be repaired, and on what terms, is confirmed in writing once the probe has been assessed.
